Enerdrive

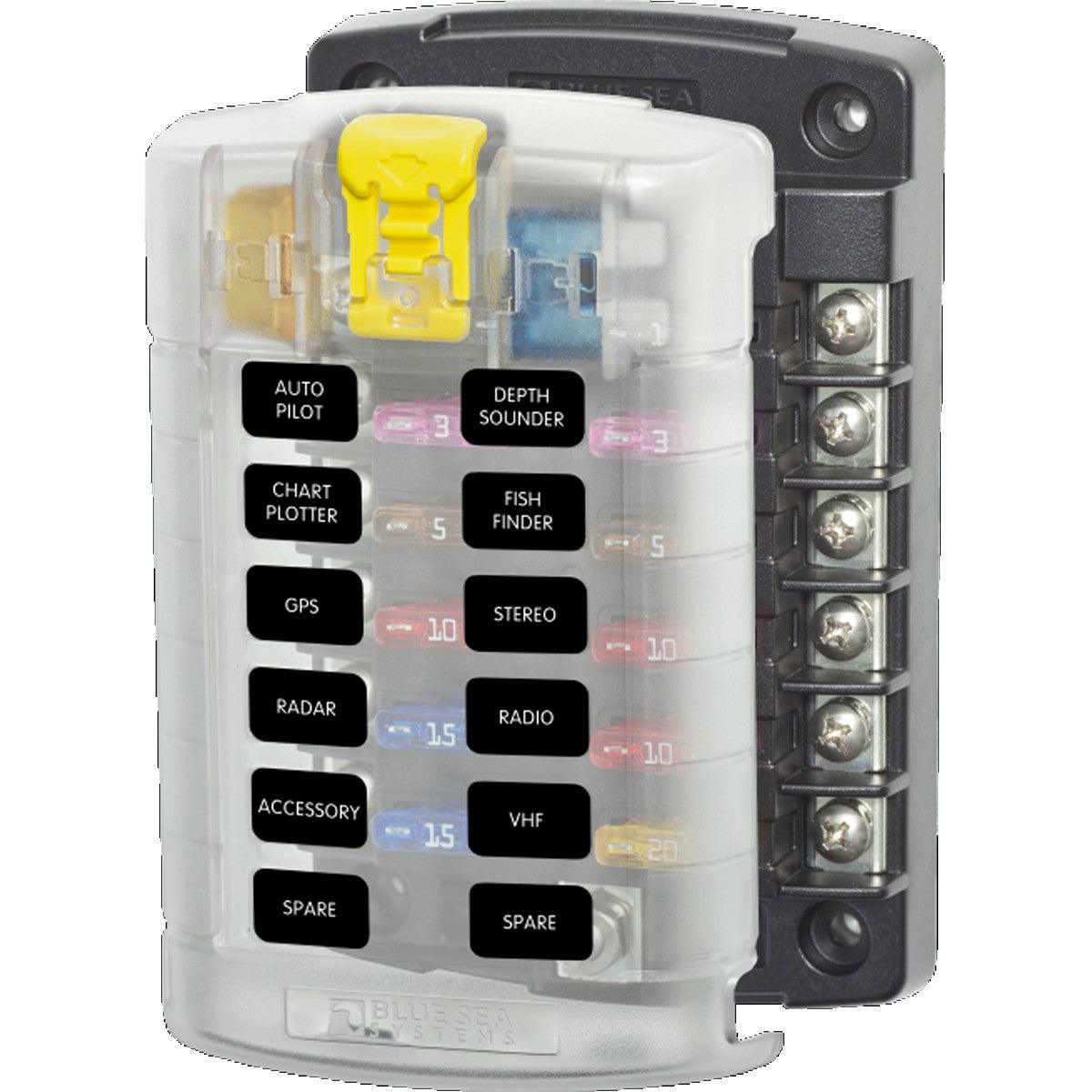

Bluesea Blade Fuse Block – 12 Circuits with Cover

$78.95

  • Bluesea Blade Fuse Block – 12 Circuits with Cover - Everything Caravans
$78.95
$78.95 $0.00
Tax included. Shipping calculated at checkout.

BS-5029B
Share this product.

ST Blade Fuse Block – 12 Circuits with Cover

Consolidates branch circuits and in-line fuses.

ST Blade Fuse Block – 12 Circuits with Cover
Circuits 12
Maximum Amperage 30A per circuit
100A per block
Maximum Voltage 32V DC
Mounting 8″ Screw [M4]
Positive Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N.m)
Screw Terminal Type #8-32 with captive start lock washer
Weight 0.31 kg


Key Features:

  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover
  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or spade type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses/labels sold separately
