J35D
Couldn't load pickup availability
Share this product.
Up to $121 off
LITHIUM COMPATIBLE BATTERY MANAGEMENT SYSTEM

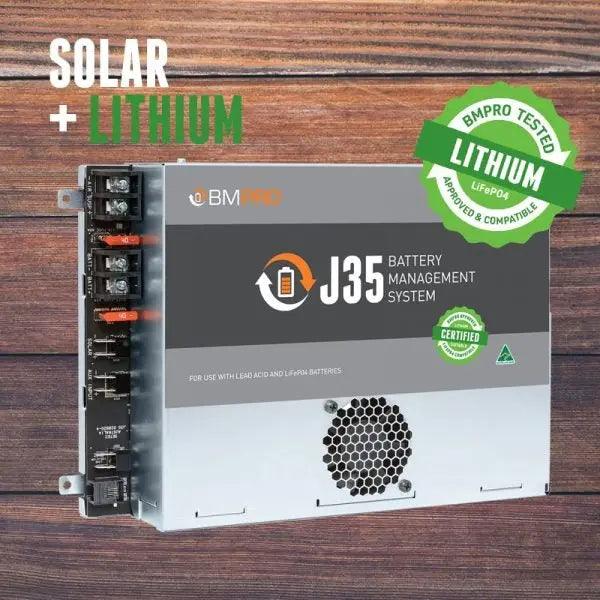

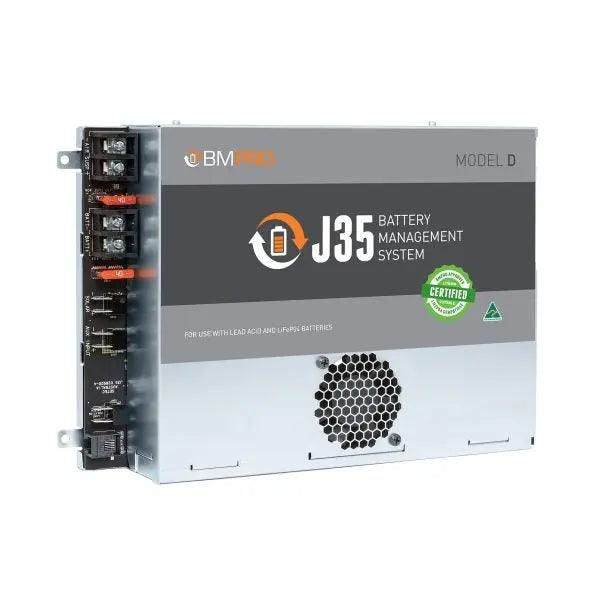

J35 Model D is lithium compatible battery management system specifically designed for Jayco Australia. It features a built-in solar regulator and a multi-stage battery charger.
The J35D can charge all types of lead acid batteries as well as lithium (LiFePO4) batteries. Allows charging of battery banks of up to 600Ah in capacity.
J35D allows you to charge the caravan battery to the optimal charge level from 230-240 Volt mains, your solar panel (28 Amp, or three panels 450W total), or from any auxiliary input, such as a power generator or your vehicle.
J35D will increase the life span of your battery thanks to the multiple battery protection features, low voltage disconnect, storage mode and multistage charging. The J35D has 14 outputs to connect your DC appliances, including hot water, water pump, lights, and many more. Built in electronic fuses for protection.
The J35D can recover and charge a heavily discharged LiFePO4 battery. The internal Battery Management System (BMS) of a LiFePO4 battery will turn off if it detects that the battery is heavily discharged. The J35D will provide the voltage to restart the LiFePO4 battery’s BMS and then commence charging of the LiFePO4 battery.
Pair J35D with the monitor, such as JControl, or a JHub app, to monitor your caravan power and control its functions.
KEY FEATURES
- 14 x 12VDC outputs
- 35A maximum output current
- 30A maximum charging current
- Solar 28 Amp
- Lithium (LiFePO4) compatible
Input Voltage Range: 240 VAC nominal, ± 10%, 50-60 Hz
Input Surge: 40 A (cold start)
Output Current: 35A Continuous (load + battery current)
Factory Set Voltage: 13.65 V ±2% (Float voltage)
Output Ripple Voltage: 150 mV
Over Voltage Protection: 18 V
Over Current Protection: 35A to 38A (load + battery current)
Battery Current Limit: 30A max
Battery Connect: 10.8 ± 0.2 V
Low Voltage Disconnect: 10.8 ± 0.2 V for lead acid, 12.0 ± 0.2 V for LiFePO4 batteries
Battery Drain after LVD: 7mA
Efficiency: 83 %
Cooling Fan: Thermally controlled
Ambient: 0°C – 50°C
Communication: CAN bus
Weight: 2 kg
Dimensions: 282 x 203 x 65
-
