J35D
Couldn't load pickup availability

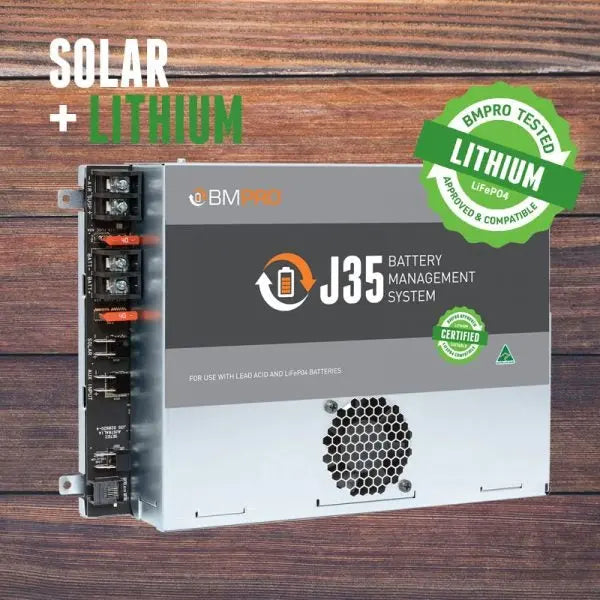

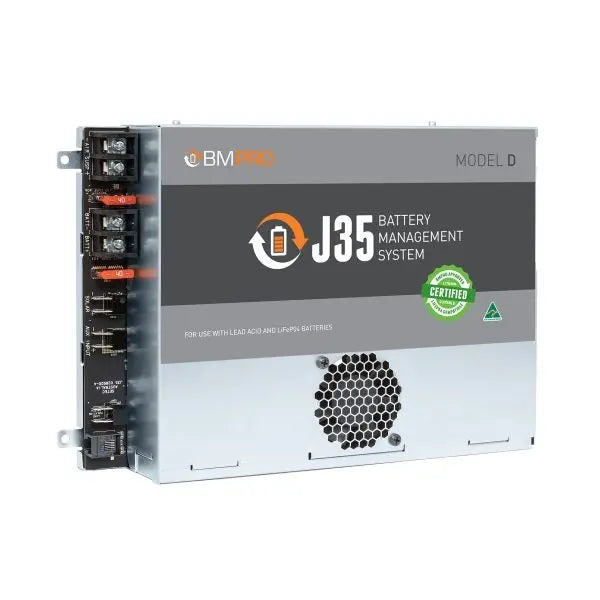

BMPRO J35D Battery Management System – Replaced by ASPERO
The J35D Battery Management System is now discontinued. For the latest technology, use the ASPERO Battery Management System by BMPro.
The J35 Model D is a lithium compatible battery management system designed for Jayco Australia. It integrates a built-in solar regulator and a multi-stage battery charger.
This unit supports charging of all lead acid and lithium (LiFePO4) battery types. It can manage battery banks up to 600Ah.
The J35D charges caravan batteries from 230-240 Volt mains, solar panels (up to 28 Amp or three panels totalling 450W), or auxiliary inputs like generators and vehicle power.
Battery lifespan is extended with features including low voltage disconnect, storage mode, multistage charging, and built-in electronic fuses. The system includes 14 DC outputs for appliances such as hot water systems, water pumps, and lighting.
The J35D can recover and charge heavily discharged LiFePO4 batteries by restarting the internal Battery Management System (BMS) before charging begins.
Compatible with JControl monitors or the JHub app for real-time monitoring and control of your caravan’s electrical system.
Features
- 14 x 12V DC outputs
- 35A maximum output current
- 30A maximum charging current
- 28 Amp solar regulator
- Lithium (LiFePO4) compatible
- Supports battery banks up to 600Ah
- Low voltage disconnect for lead acid and lithium batteries
- Multistage charging with battery protection features
- Built-in electronic fuses
- CAN bus communication
- Thermally controlled cooling fan
Specifications:
Input Voltage: 240 VAC ±10%, 50-60 Hz
Input Surge Current: 40 A (cold start)
Output Current Continuous: 35A (load + battery)
Factory Set Float Voltage: 13.65 V ±2%
Output Ripple Voltage: 150 mV
Over Voltage Protection: 18 V
Over Current Protection: 35–38A (load + battery)
Battery Current Limit: 30A max
Low Voltage Disconnect: 10.8 V ±0.2 (lead acid), 12.0 V ±0.2 (LiFePO4)
Battery Drain After LVD: 7mA
Efficiency: 83%
Operating Temperature: 0°C to 50°C
Weight: 2 kg
Dimensions: 282 mm x 203 mm x 65 mm
-
