Shurflo Water Pressure Pump 4009 Revolution Caravan Motorhome

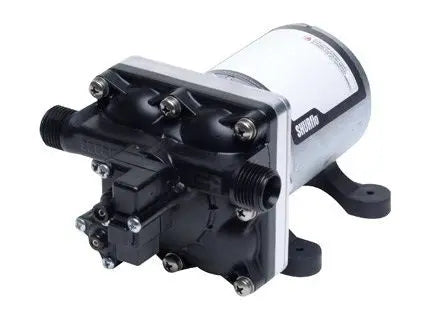

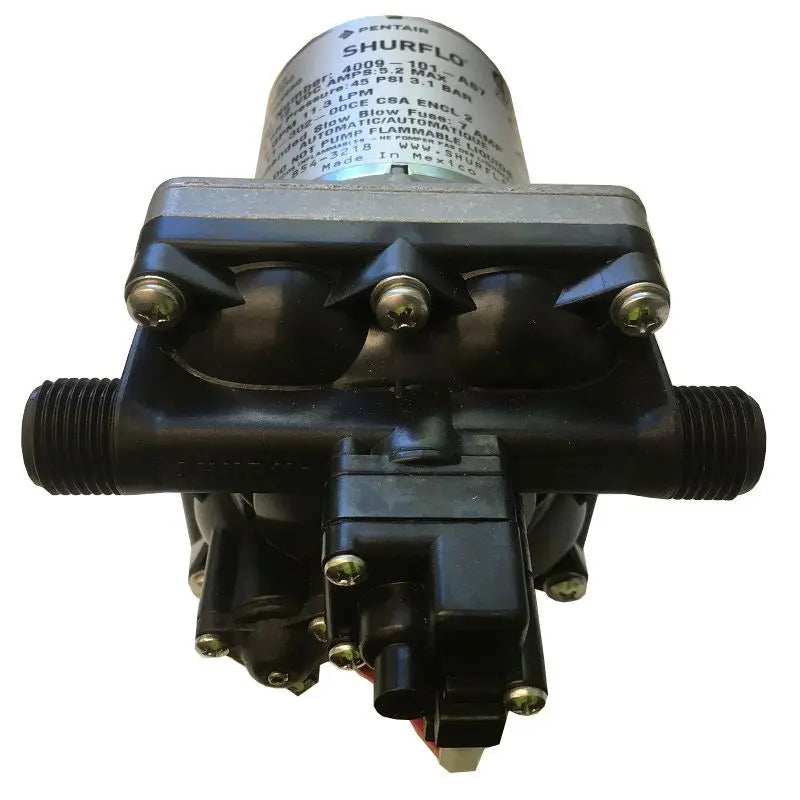

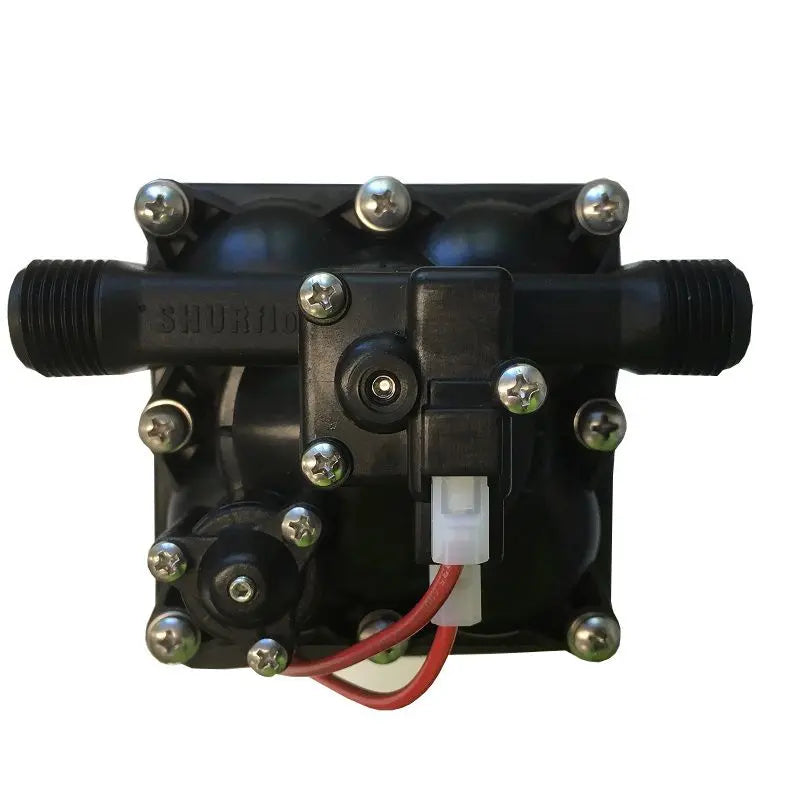

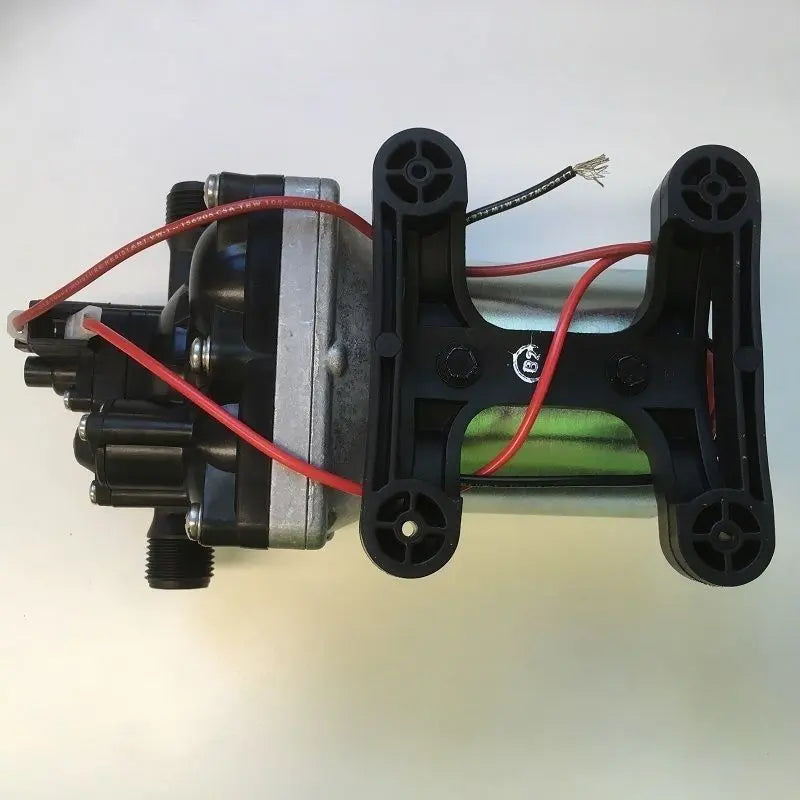

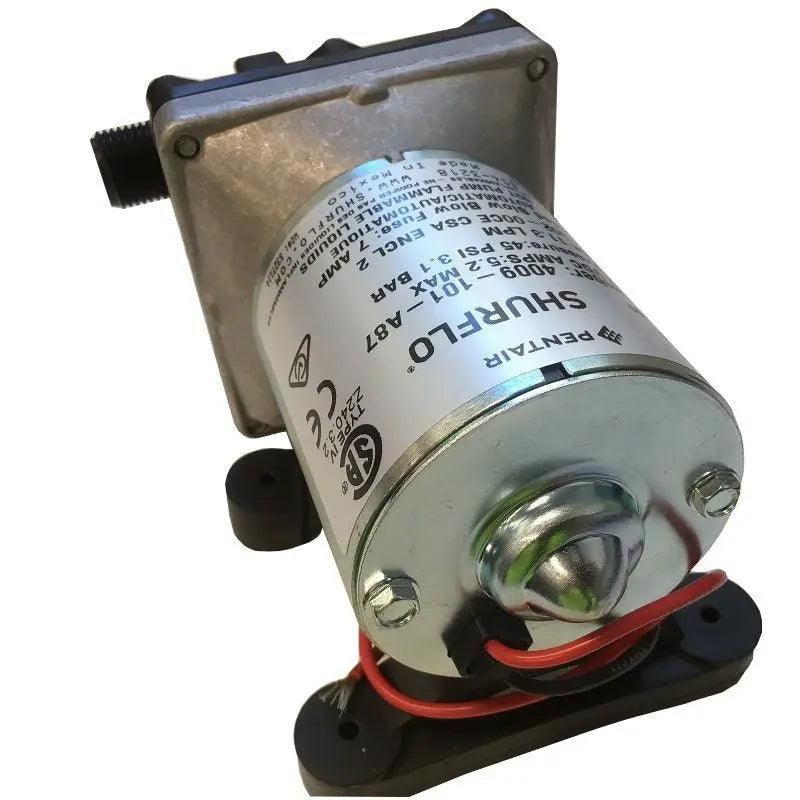

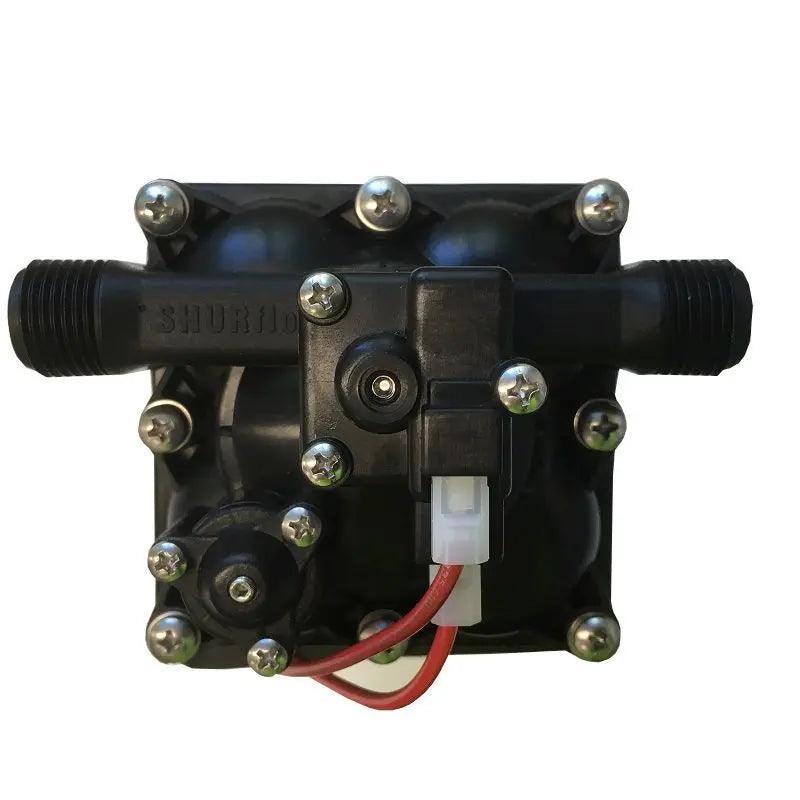

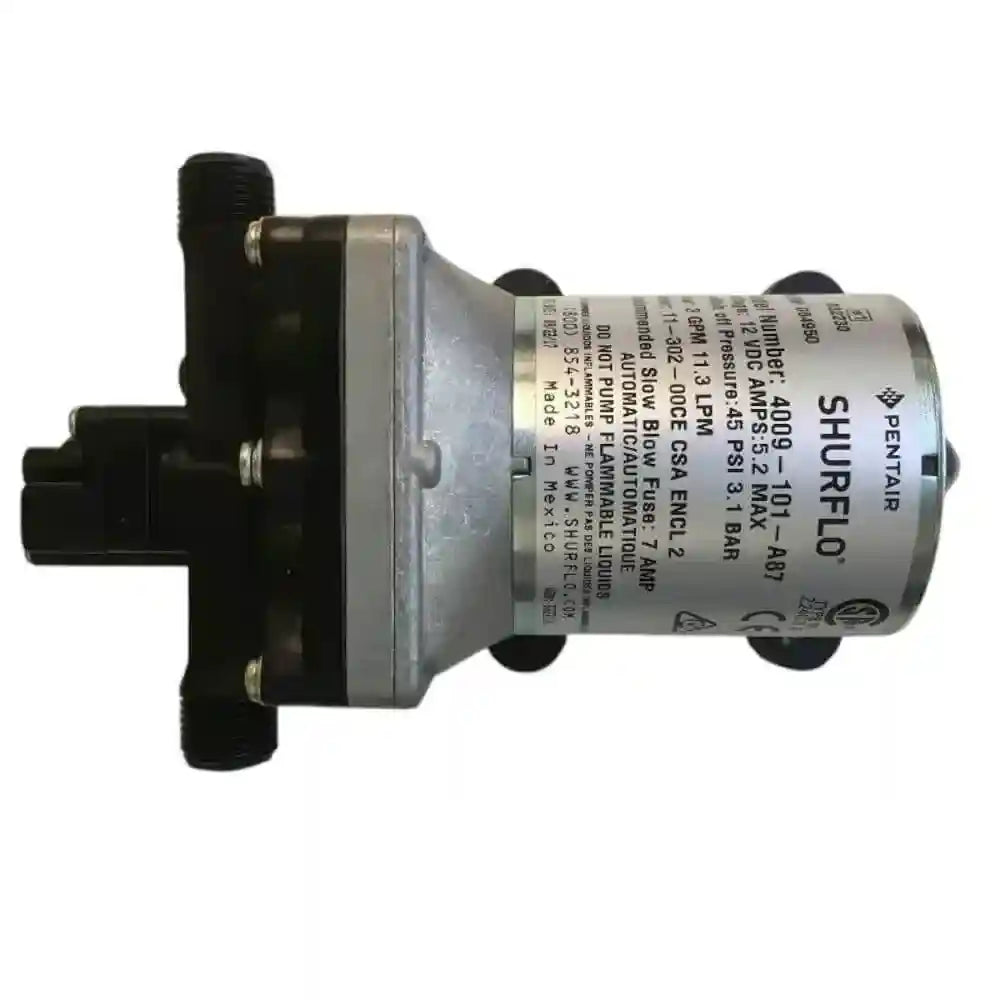

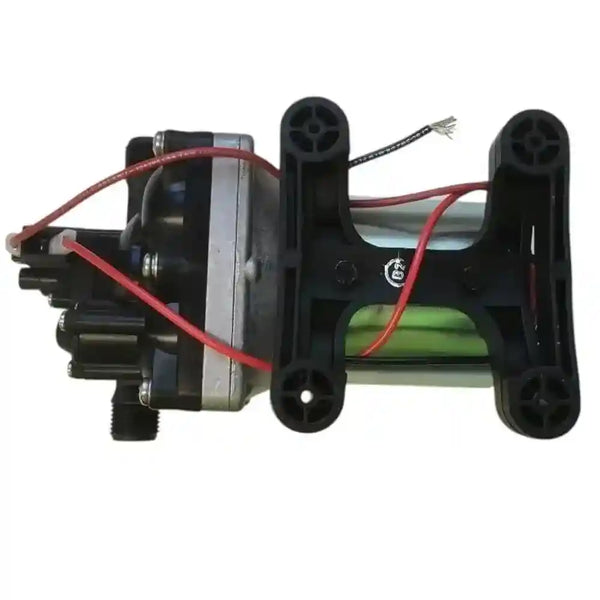

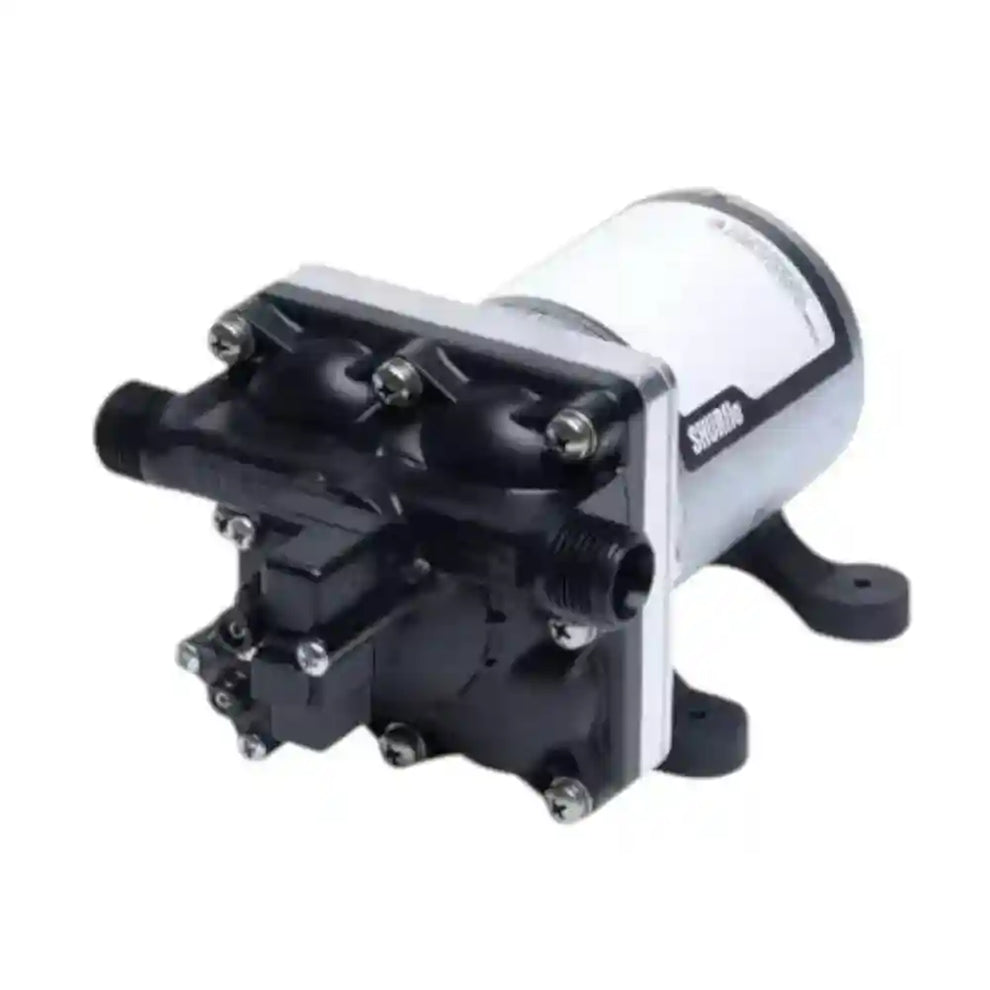

Shurflo Water Pressure Pump 4009

The Shurflo Water Pressure Pump 4009 is suitable for caravans, motorhomes, and buses. It can be mounted in any position and operates quietly while supporting high flow rates.

This automatic 12V freshwater demand pump features a four-chamber diaphragm and internal bypass to provide consistent flow, reduce noise, and minimise cycling. It activates when system pressure drops and shuts off at 45 psi (3.1 bar). The pump is thermally protected, dry-run safe, and can be installed in any orientation.

It is a direct replacement for the Shurflo Series 2088 pumps. This listing includes the pump only; inlet filters and fittings are sold separately.

Features

• Replacement for Shurflo Series 2088 pumps
• Four-chamber diaphragm design
• Internal bypass for smoother low-flow operation and reduced cycling
• Self-priming up to 1.8 m vertically
• Can run dry without damage
• Thermal overload protection with automatic restart
• No accumulator needed for standard installation (optional fitting possible)
• Voltage: 12V DC
• Maximum current: 5.2 A
• Maximum flow rate: 11.3 L/min (3.0 GPM)
• Pressure shut-off: 45 psi (3.1 bar)
• Restart pressure: 30 psi (2.1 bar)
• Maximum inlet pressure: 30 psi (2.1 bar)
• Maximum liquid temperature: 54°C
• Fuse rating: 7 A recommended
• Pump ports: 1/2-14 NPSM male
• Dimensions: 205 mm (L) x 125 mm (W) x 111 mm (H)

Use for water only. Do not pump flammable liquids.

Industry standard pump with four diaphragms for quiet operation.

Rebuildable with available spare parts.

Recommended pump for all caravan and motorhome water systems.

Note: This pump does not include fittings or retail packaging.
