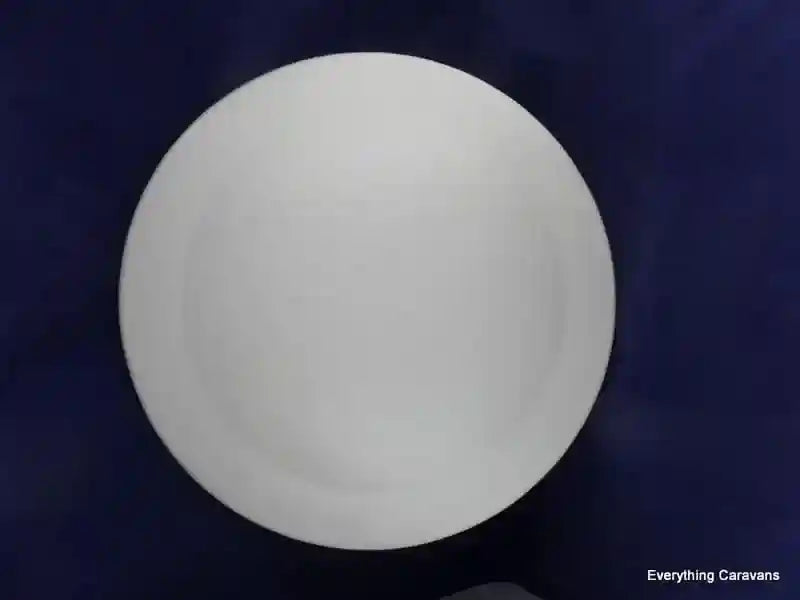

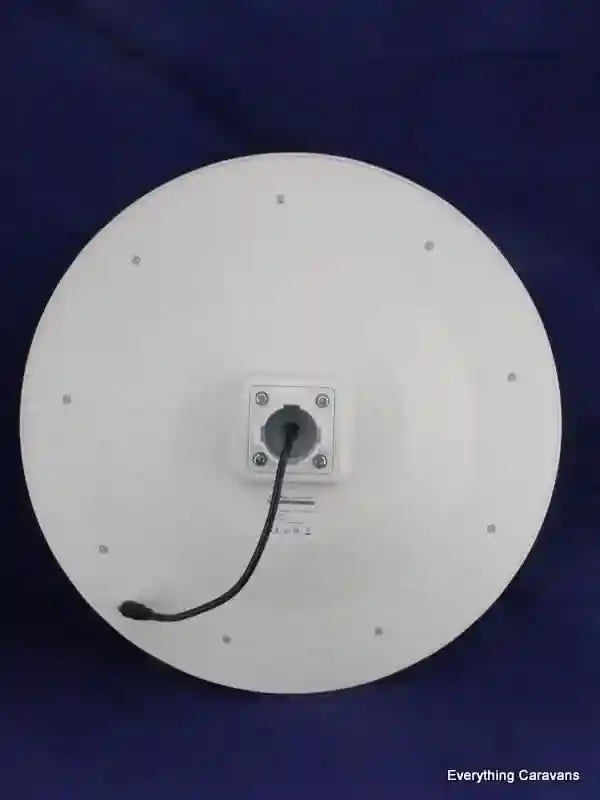

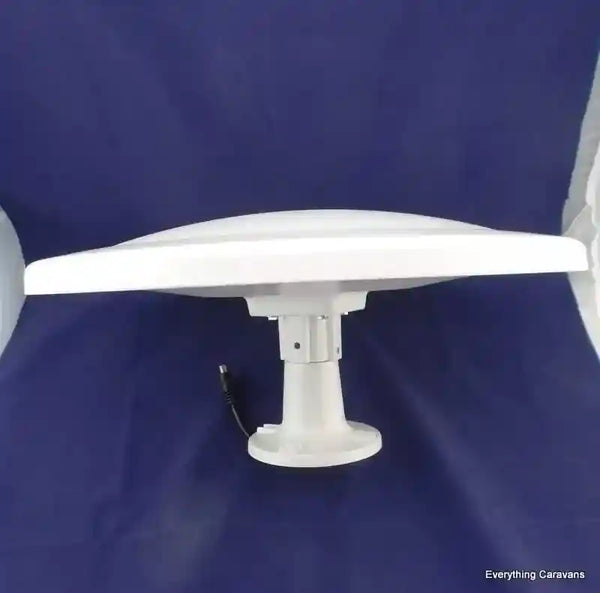

Satking SK-380 Omni-Directional Marine & Caravan TV Antenna

Satking SK-380 Omni-Directional Marine & Caravan TV Antenna Set and forget antenna - no more fiddling to find the signal - with the digital signal it is either there or not. Boosted signal reception.

Features:

  • High performance antenna compatible with HDTV and various digital terrestrial signals including FM & DAB radio
  • Waterproof housing made of UV resistant heavy duty ABS plastic
  • Omni directional design receives signals from all directions; this is a must for marine use
  • Built in 30dB hi gain low noise amplifier, fully shielded to reduce interference in low signal areas
  • Perfect for use with boats, caravans and motor homes
  • The unit comes supplied with water sealed roof mounting kit, this unit can also be pole mounted

Specifications:

  • Frequency range: VHF 176-230 MHz and UHF 470-862 MHz
  • Bands: FM, B-III, B-IV, B-V
  • Gain: 30dB
  • Noise figure: 3dB Max
  • Output level: 110dBuV Max
  • Impedance: 75Ω

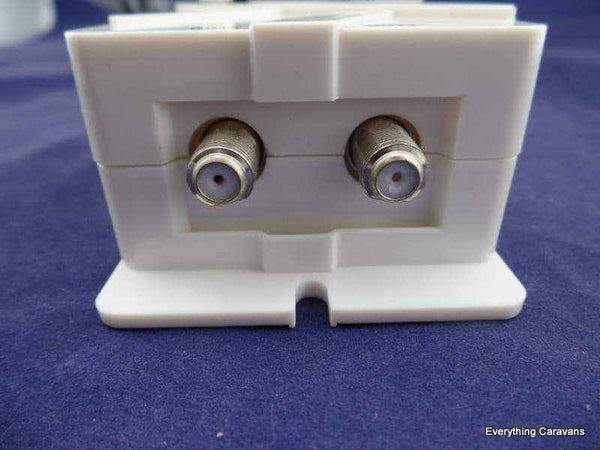

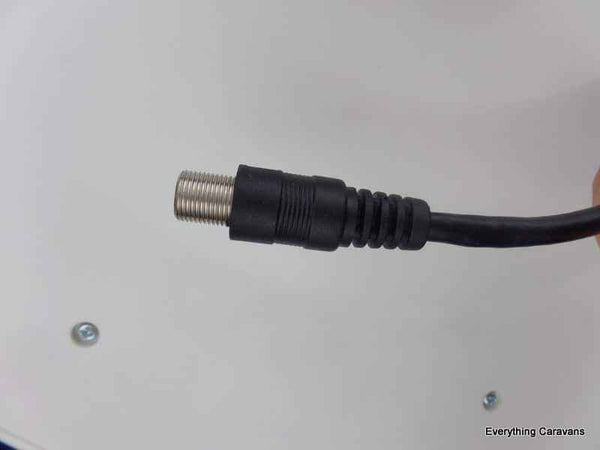

  • Connectors: F-Type
  • Power supply: 12 Volt
  • Diameter: 480mm
  • Height: 220mm
  • Base plate: 134mm x 134mm

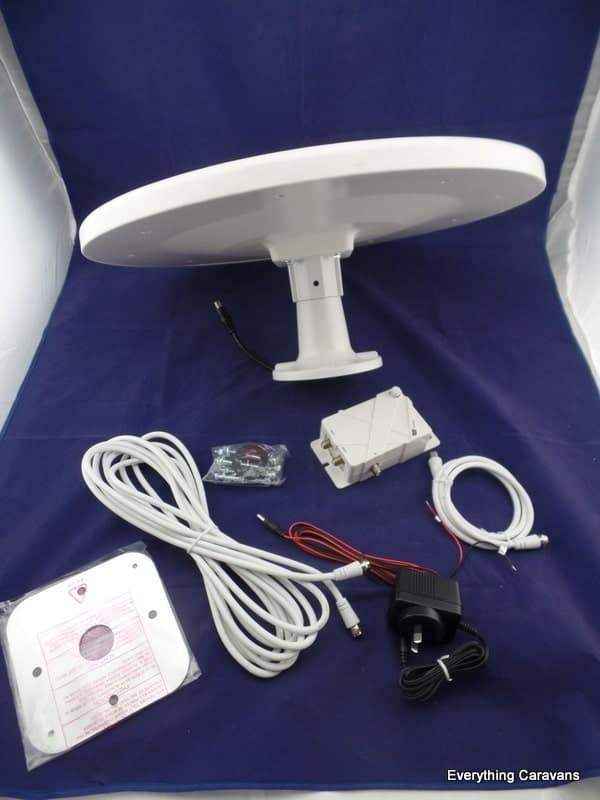

Includes:

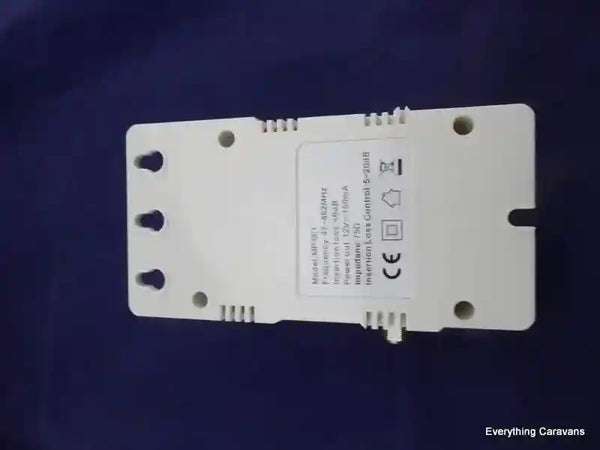

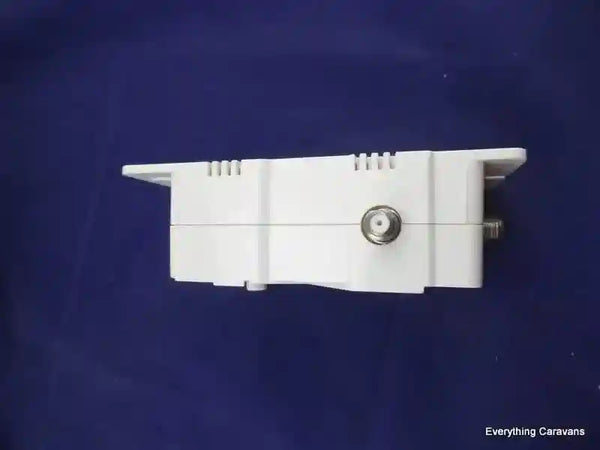

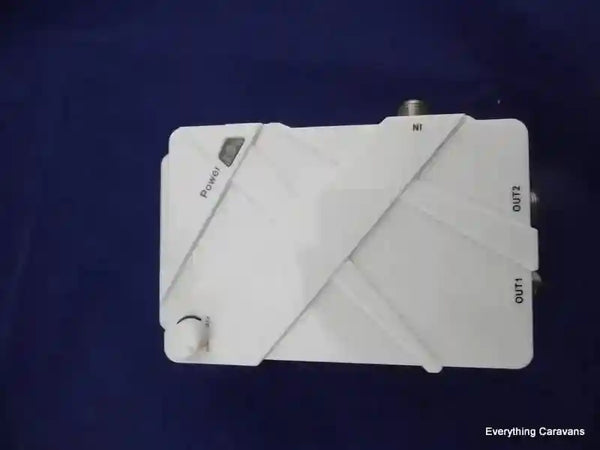

  1. Power injector with gain control
  2. 240 Volt Mains power pack
  3. 12 Volt DC wire with 2.1mm jack
  4. 1.5 Metre coaxial cable
  5. 10 Metre coaxial cable

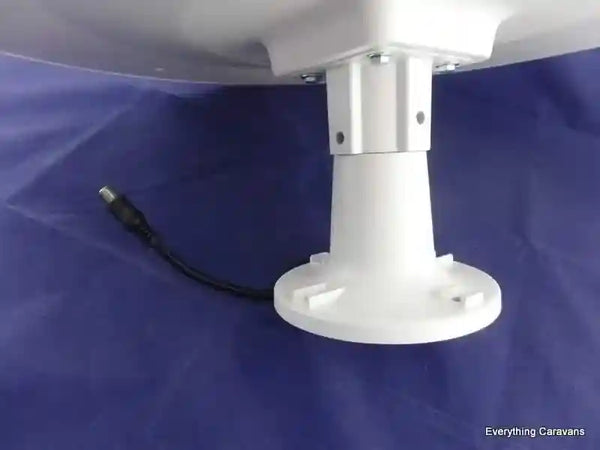

  6. Roof mounting kit
  7. Instruction manual
