National Luna Portable Power Pack - Dual Battery System

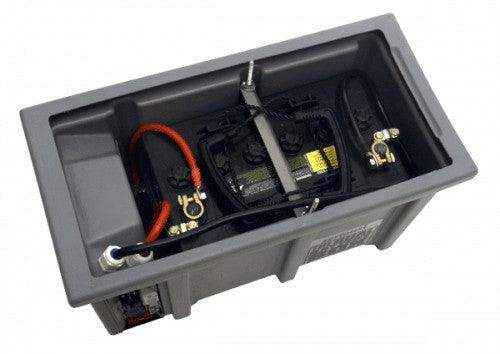

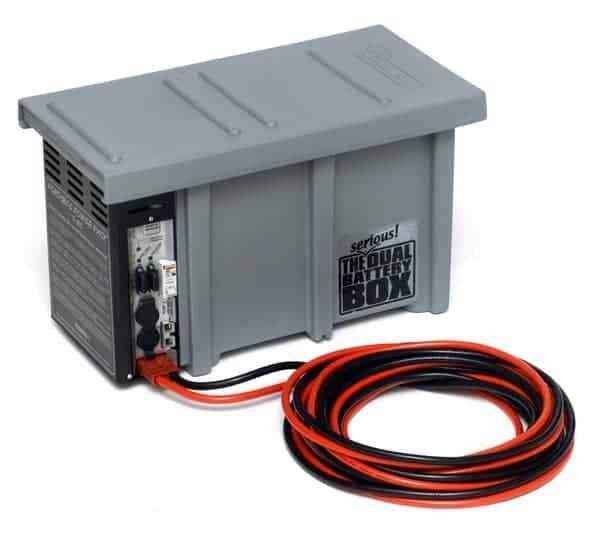

The National Luna Portable Power Pack is a complete Dual Battery System contained within a HD poly case with built in split charge isolator, circuit breaker, 3 power outlets, 2 battery voltage monitors and other system indicator LED's.

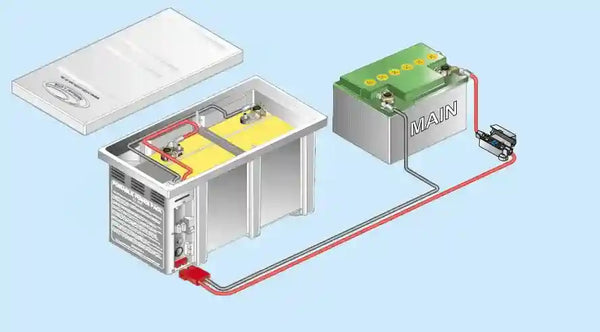

Ideal for vehicles where it is not possible or desired to mount a dual battery under the bonnet.   The only wiring in the host vehicle(s) is the charge lead which simply connects to the & - terminals of the main vehicle battery.
When needed, just drop in the Power Pack, connect the charge lead using the red colored anderson socket and connect your fridge or other appliance.
Supplied without a battery so you can select the most suitable battery for your application. This also means you can easily replace the battery if it wears out or your needs change. Suits up to 125 amp/hr battery and any type of battery.
  • Slide-Lock Lid
  • Fully fused outputs
  • Very simple to install
  • Accurate battery monitors
  • Snap-On input power coupler
  • Cables and power fuse supplied
  • Accepts any standard automotive battery
  • Fully automatic split-charge isolator included.
Fitting Instructions National Luna Portable Power Pack
  • Simple installation
  • Removable / Portable design
  • Fully automatic split-charge isolator

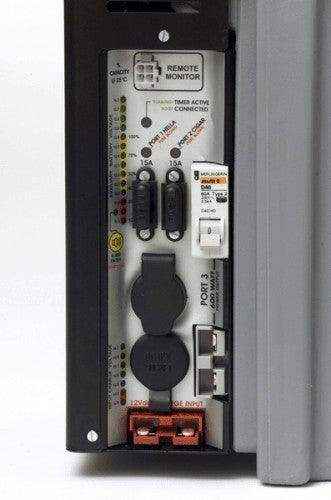

  • Built-in battery monitor and input voltage monitor
  • Remote battery monitor port (for remote dual battery controller)

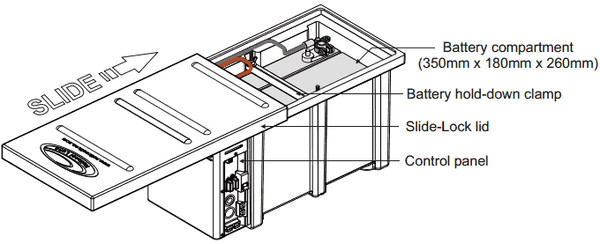

  • Slide-lock lid
  • Bolt-down / Strap-down design
  • Electronics isolated from battery compartment
  • Can accommodate standard automotive battery types
  • 7-metre heavy-duty cable supplied with attached coupler
  • Fuse-protected plugs and connections
  • Battery hold-down bracket supplied
  • In-line fuse supplied
  • Additional battery terminals and hardware supplied
  • Additional cables, hardware and monitors available separately

  • Physical size 500mm (l) x 260mm (w) x 300mm (h)
  • Weight 5.2Kg (excluding battery and cables)
  • Power supply 8Vdc - 15Vdc (display range: 11.4V - 14.2V)
  • Switched current 85 amp (continuous) , 400 amp (peak)
  • Cable 7-metre red and black (14m total) with connector
  • Connectors "Hella" style output (15A fused)
  • "Cigarette lighter" output (15A fused)
  • 50 amp input-output coupler (60A fused)
  • 50 amp charge input (split-charge input)
  • Remote port Suits removable data cable for Dual Battery Controller
  • Battery monitors 14-stage auxiliary battery monitor ( 11.4V - 14.2V)
  • 7-stage input voltage monitor (12.6V - 14.2V)
  • Power consumption
  • 60mA avg (standby)
  • 780mA max (solenoid engaged)
