FURRION 12000 BTU Rooftop Air Conditioner - 3.5KW

Furrion 12000 BTU Rooftop Air Conditioner - 3.5KW

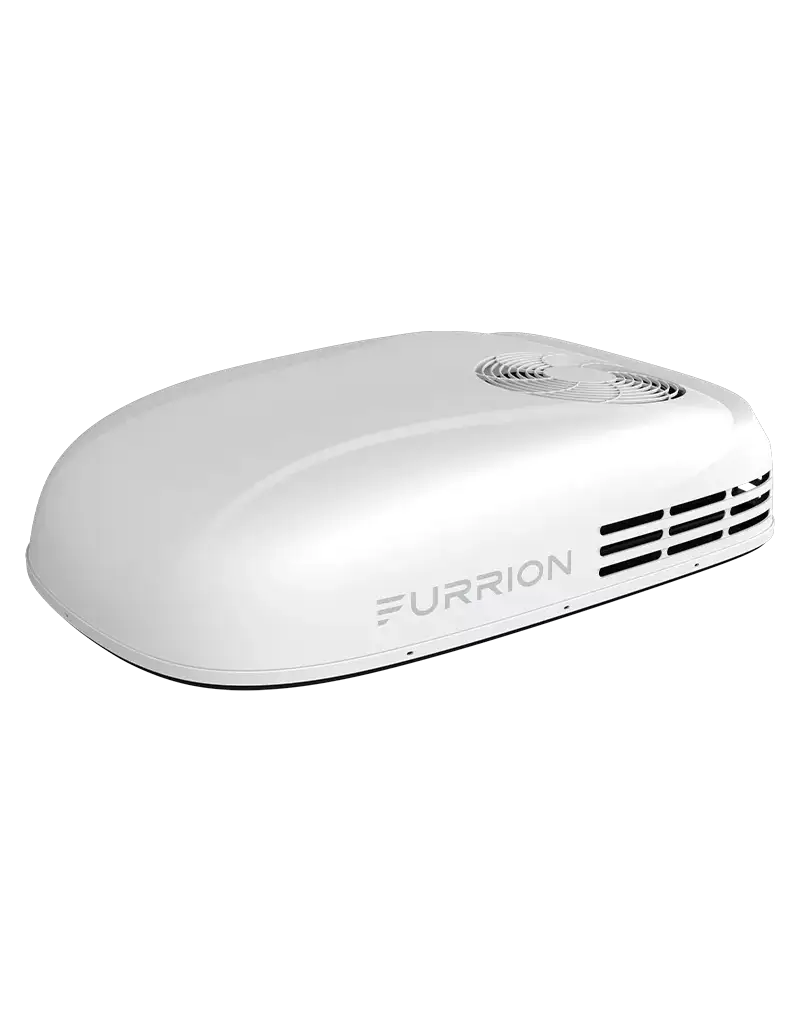

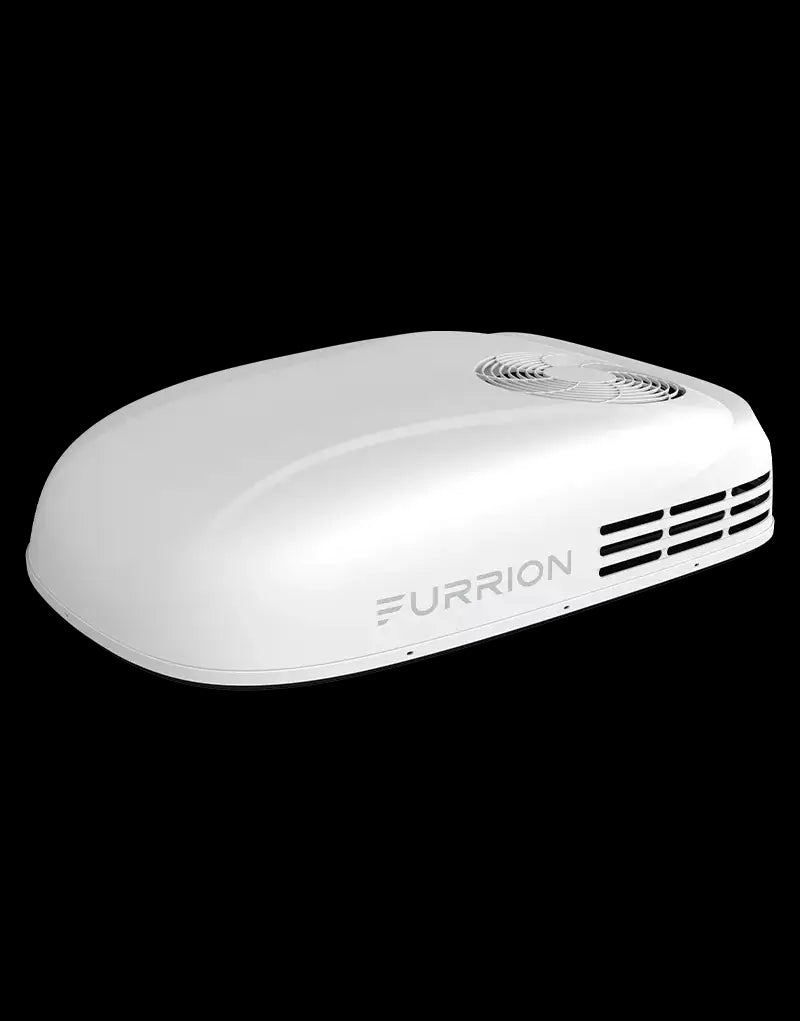

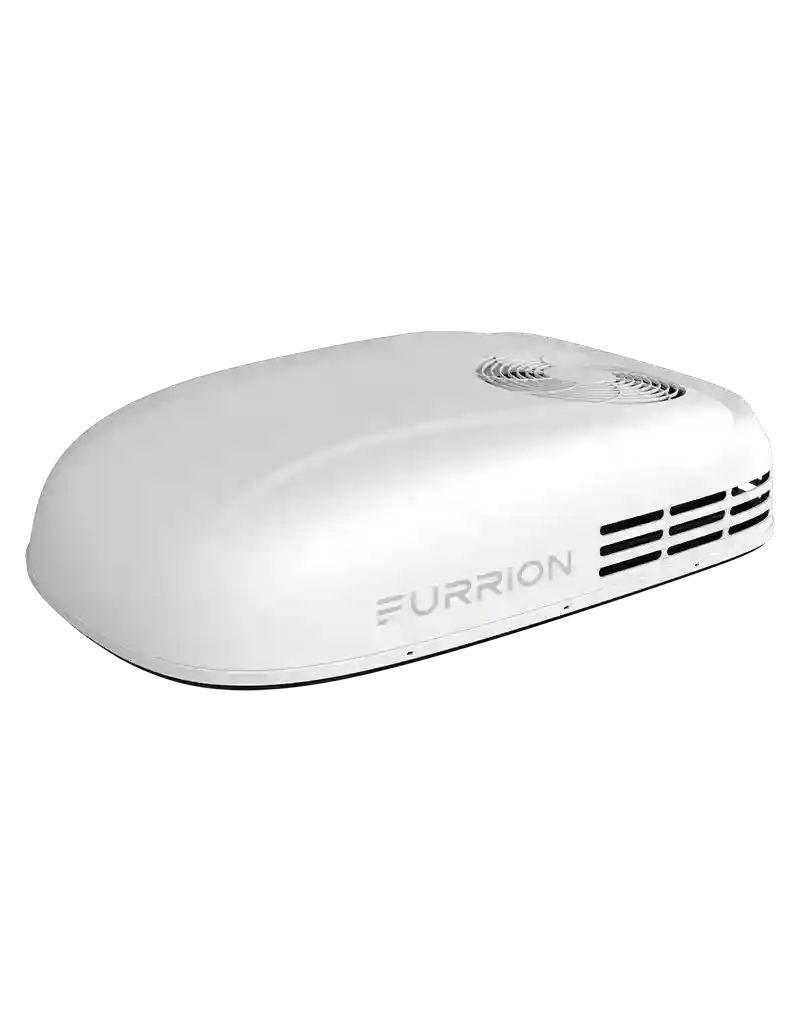

The Furrion 12000 BTU rooftop air conditioner (Model 100-04032) is a reverse-cycle unit designed for caravans, motorhomes, and RVs up to 8 metres long. It provides both cooling and heating suitable for a wide range of Australian conditions. The unit features a multi-fit gasket kit compatible with standard 36x36 cm and 40x40 cm roof cut-outs, simplifying installation on varying roof thicknesses.

Features

• Reverse-cycle heat pump for cooling and heating
• Multi-fit gasket kit supports 36x36 cm and 40x40 cm roof openings (fits roof thickness 26–100 mm)
• Cooling capacity: 3.5 kW / 12,000 BTU (input power 1,300 W)
• Heating capacity: 3.6 kW / 12,500 BTU (input power 1,060 W)
• Input voltage: 220–240 V AC / 50 Hz (nominal current 5.5 A)
• Operating temperature range: -7°C to +43°C
• Maximum airflow: 480 m³/h
• Dual fan motors for quieter operation
• 3-speed fan settings: High, Medium, Low
• Remote control included for easy operation
• Sleep mode and auto mode for comfort
• On/Off timer function

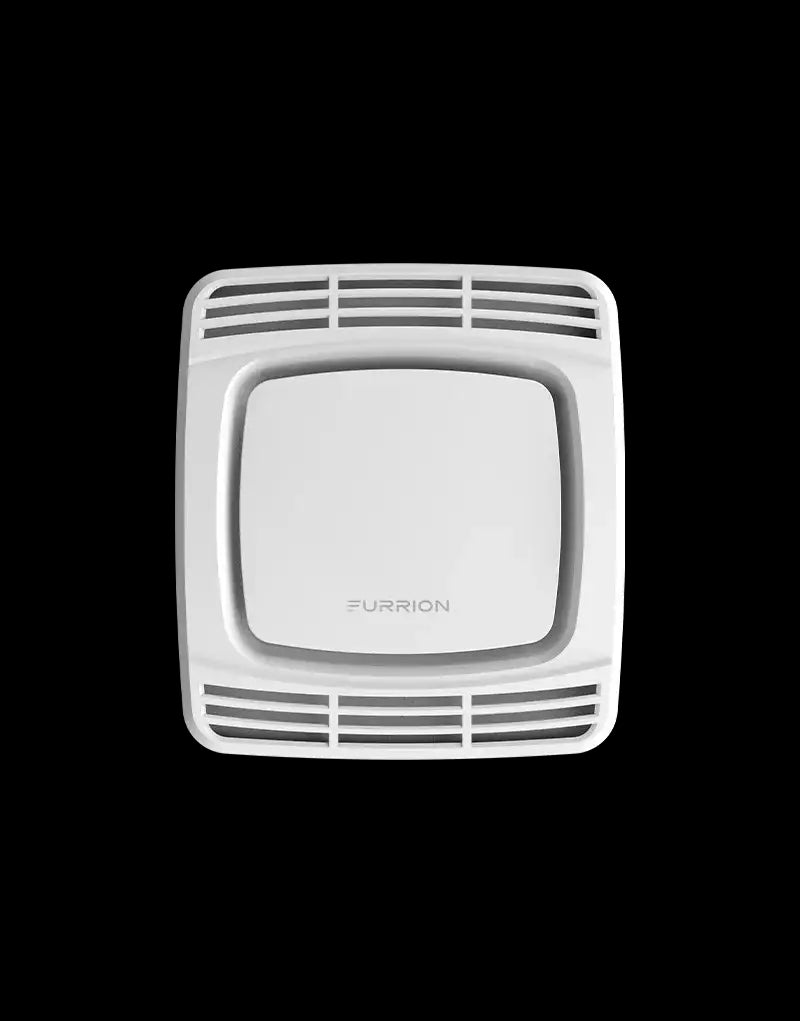

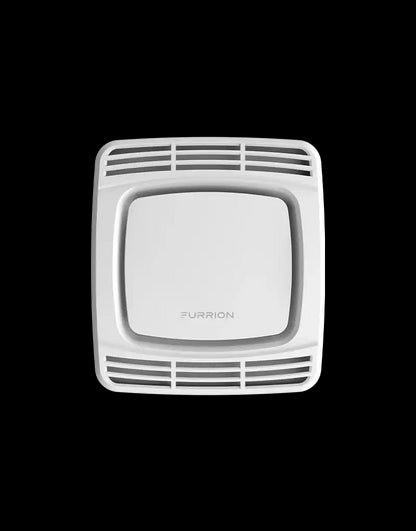

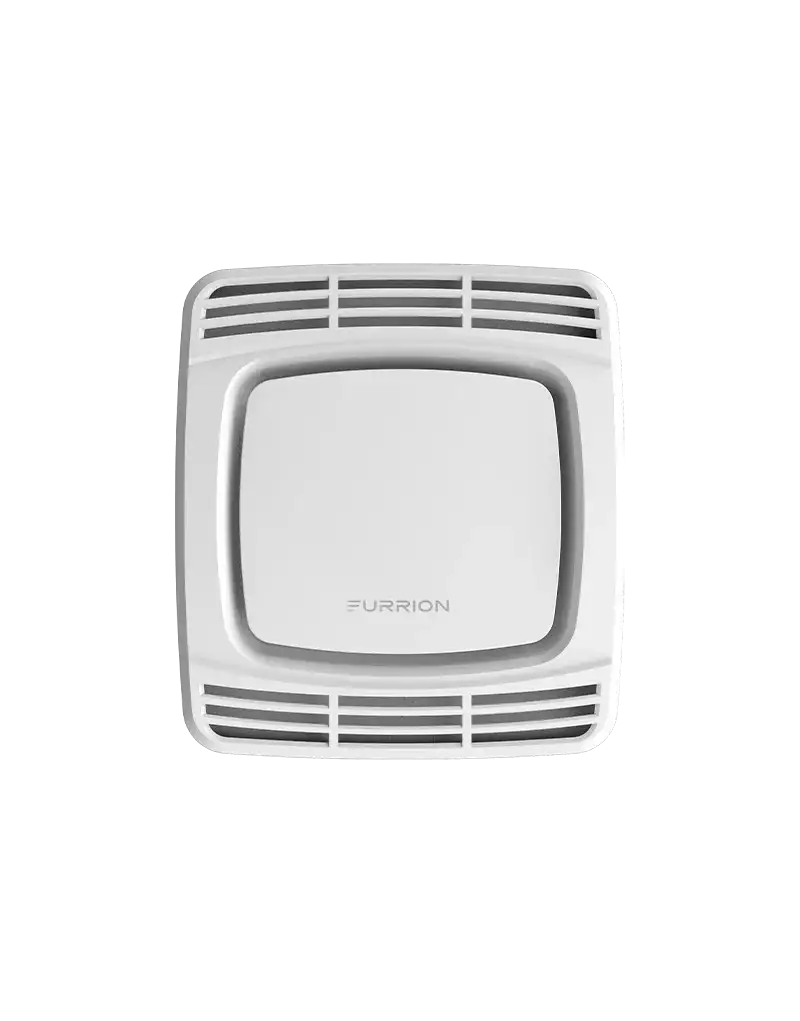

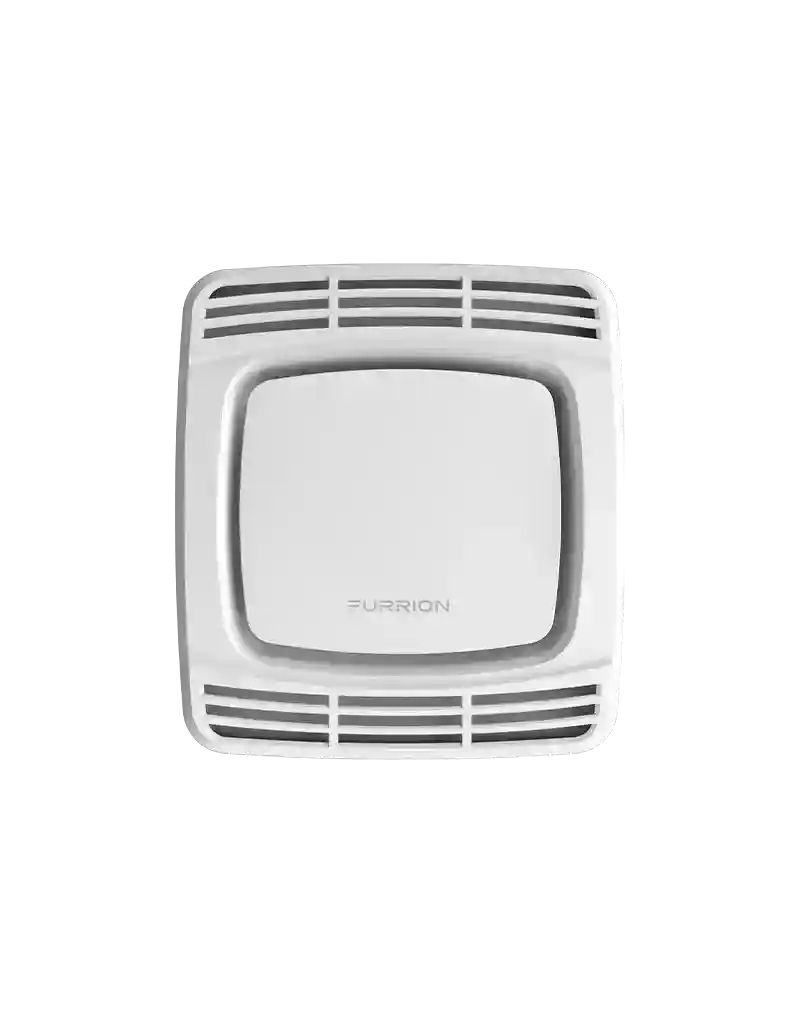

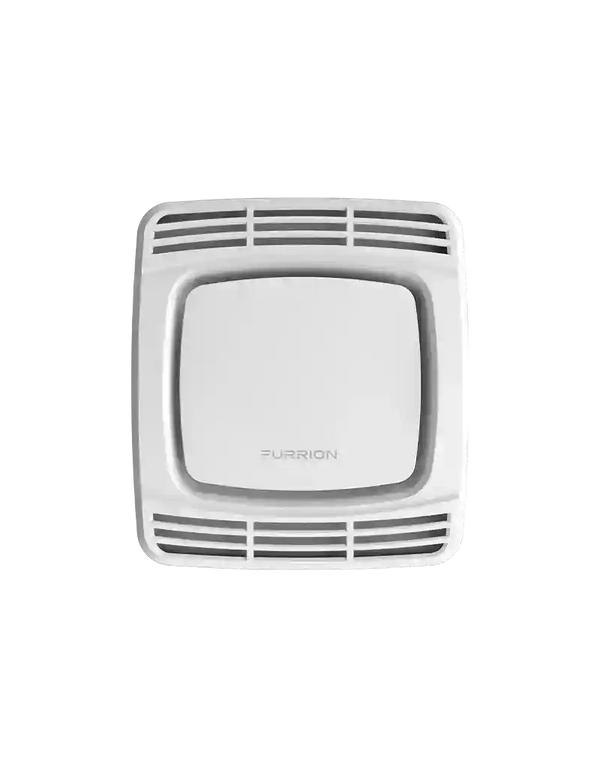

• LED strip on the interior air outlet plenum
• Rubber dampers reduce noise and vibration
• Vibrationsmart™ technology for durability on rough roads
• Climatesmart™ technology for reliable performance across temperature changes
• Overload protection for safety
• Refrigerant type: R410A (740 g)
• Protection rating: IPX5

Specifications

• Dimensions (W x H x D): 738 mm x 278 mm x 1056 mm
• Package dimensions (L x W x H): 1108 mm x 758 mm x 308 mm
• Net weight: 45 kg
• Gross weight: 50 kg

Usage Tips

• Ensure roof cut-out matches one of the gasket kit sizes (36x36 cm or 40x40 cm) before installation.
• Use the remote control for easy switching between modes and fan speeds.
• Set the timer or sleep mode for energy-efficient operation during rest.
• Ideal for caravans and motorhomes up to 8 metres in length.
