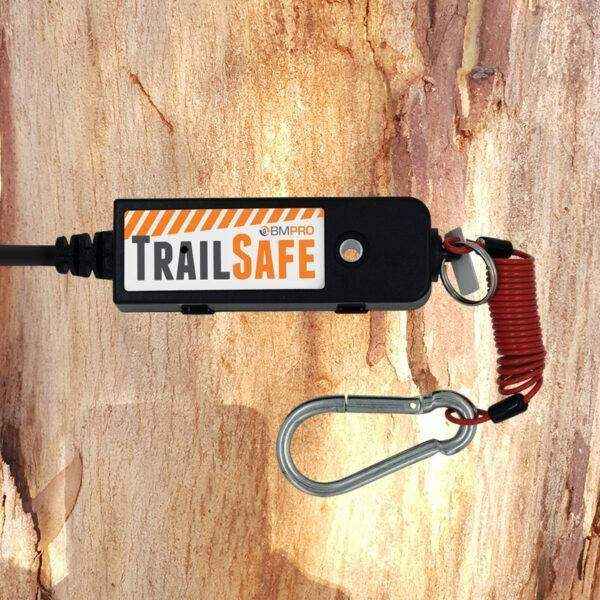

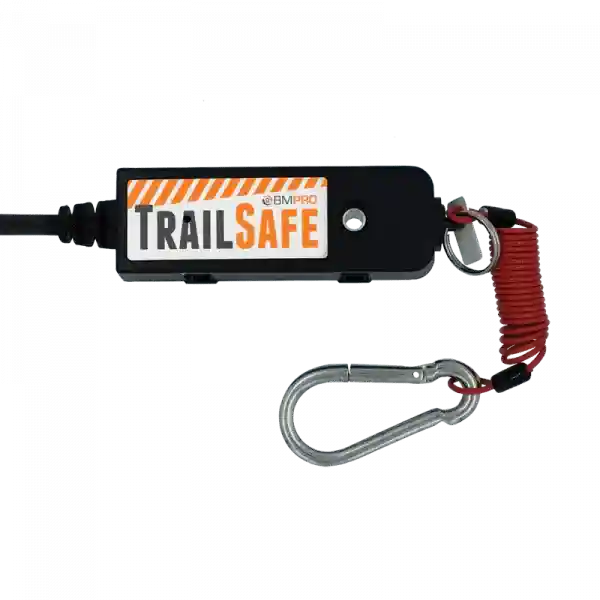

BMPRO Trailsafe Emergency Trailer Break-Away Safety System

BMPRO TrailSafe Emergency Trailer Break-Away Safety System

Tow a trailer safely and legally with the BMPRO TrailSafe break-away safety system. Designed to activate trailer electric brakes automatically if the trailer detaches from the tow vehicle, it meets Australian regulations for trailers over 2000kg.

Features

• Activates brake lights and electric trailer brakes when break-away occurs
• Bluetooth and wired connection options for vehicle monitors (required in NSW)
• Intelligent timeout to protect trailer brakes from damage
• LED indicators provide full system status check on the trailer
• Powered by the trailer’s house battery; no secondary battery needed
• Meets Australian Design Rule for break-away systems on trailers over 2000kg gross trailer mass
• Tests pull pin status and battery health regularly

Specifications

• System Voltage: 12V
• Battery Compatibility: Lead acid batteries over 50Ah; LiFePO4 batteries 100Ah or greater
• Operating Temperature: -20°C to 60°C
• Ingress Protection: IP67 weatherproof rating

Operation and Testing

When the mechanical pull pin is removed, TrailSafe detects trailer separation, activating the trailer electric brakes and brake lights. Brakes remain active until the pin is replaced or battery charge is depleted.

LED status indicators show battery condition during break-away or manual test:

• Green: Battery is in good condition
• Orange: Battery condition requires checking

To test the system, remove the pull pin and observe the LED status lights. If green, the system is functional.

Regulatory Compliance

Complies with Australian Design Rule requiring trailers over 2000kg to have a break-away safety system that can hold brakes active for at least 15 minutes after disconnection.
