BMPRO PXShunt500 Wired External Shunt

PXShunt500 Wired External Shunt for High Current Power Management Systems

The PXShunt500 is an advanced, wired battery monitoring solution designed for high current BMPRO power management systems. Engineered to support 12V batteries up to 1200Ah, this external shunt is perfect for accurately monitoring voltage, current, and energy usage. The PXShunt500 provides critical data on battery state of charge and time remaining, making it an essential addition for caravans and high-demand power systems.

Features

• Compatible with Lead Acid and LiFePO4 deep cycle batteries
• LED status indicators for quick and easy monitoring
• Rated for 500A continuous current
• IP67 rated, suitable for external mounting in caravans
• Communicates via CAN bus cable for reliable data transmission

Specifications

• Voltage Range: 8V - 16V
• Voltage Resolution: < 20mV
• Current Range: 500A (with overload protection up to ±800A)
• Temperature Range: -10°C to 50°C
• Capacity: 1200Ah
• Quiescent Current Drain: XShunt500: <10mA, PXGateway: <20mA
• Humidity Operating: ≤ 90% RH non-condensing

Dimensions

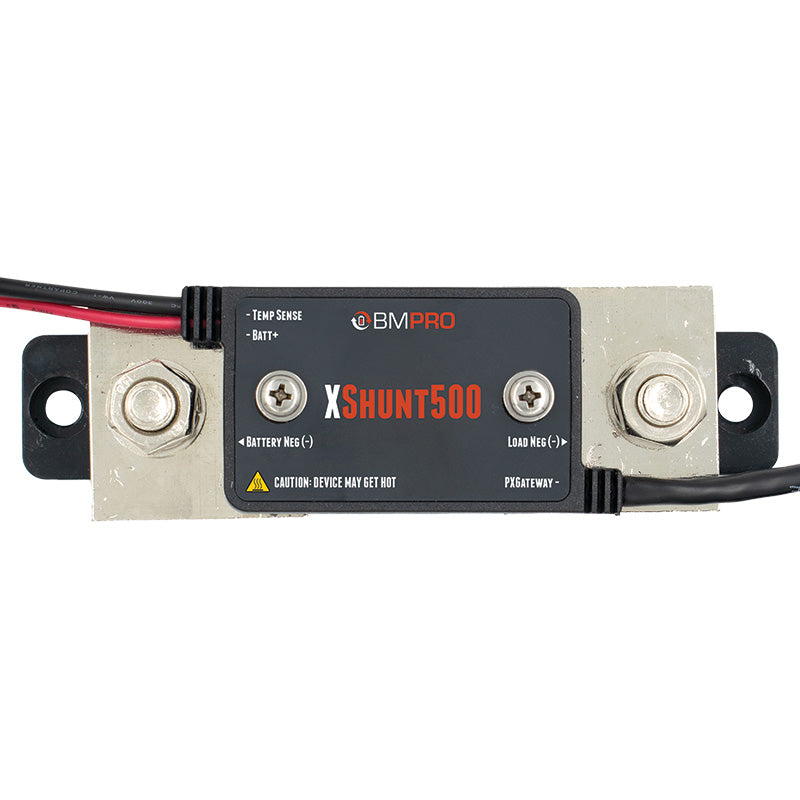

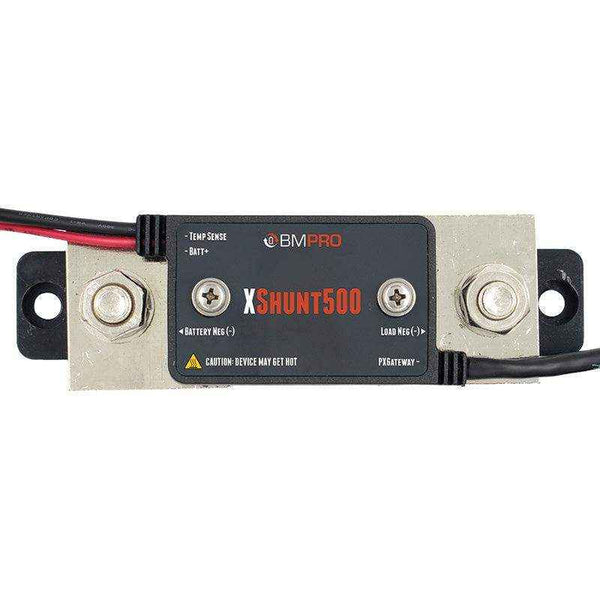

• XShunt500 Dimensions: 156 x 46 x 47.5mm, Weight: 1kg

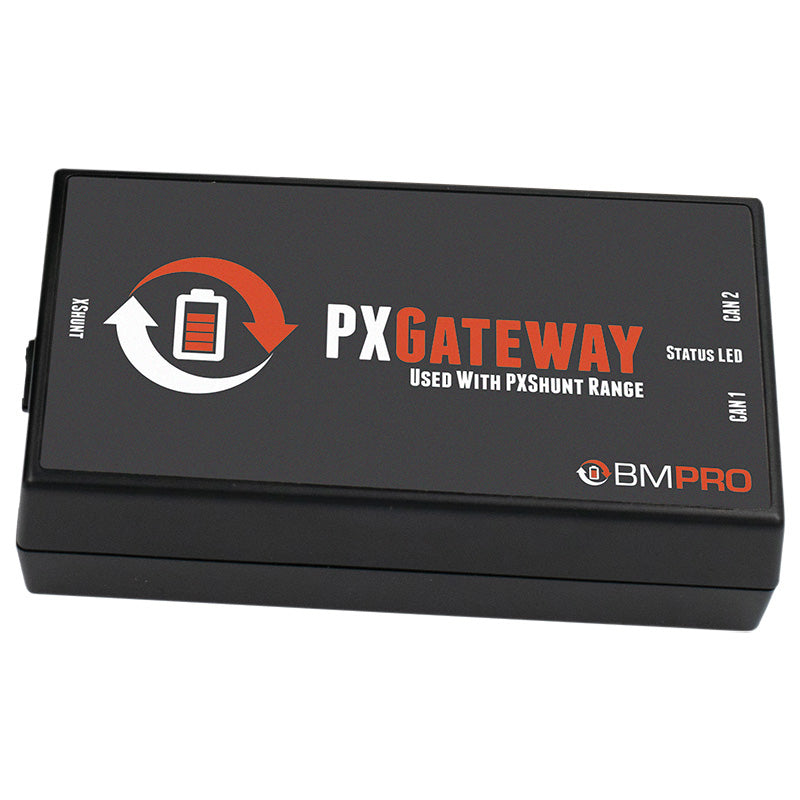

• PXGateway Dimensions: 90 x 52 x 24mm, Weight: 150g

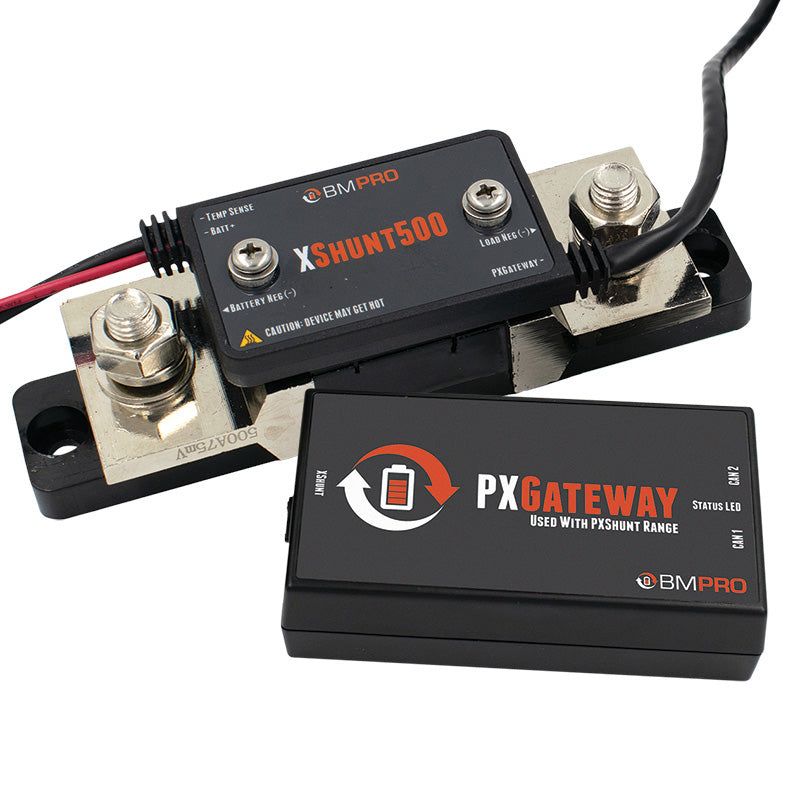

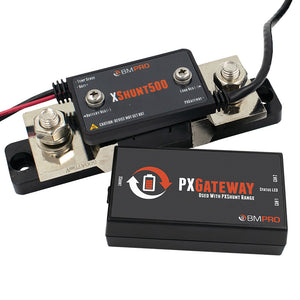

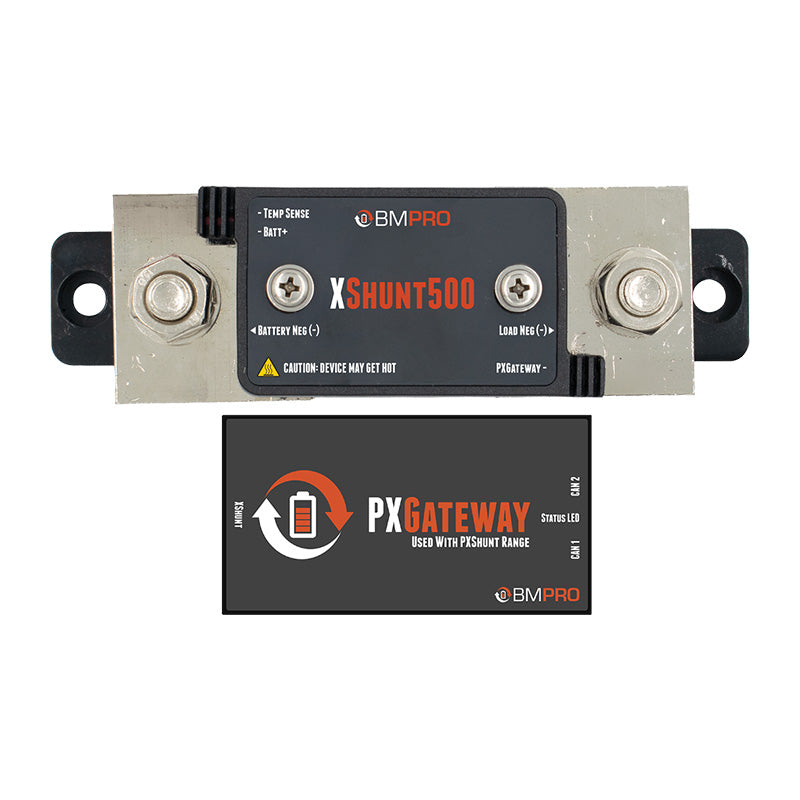

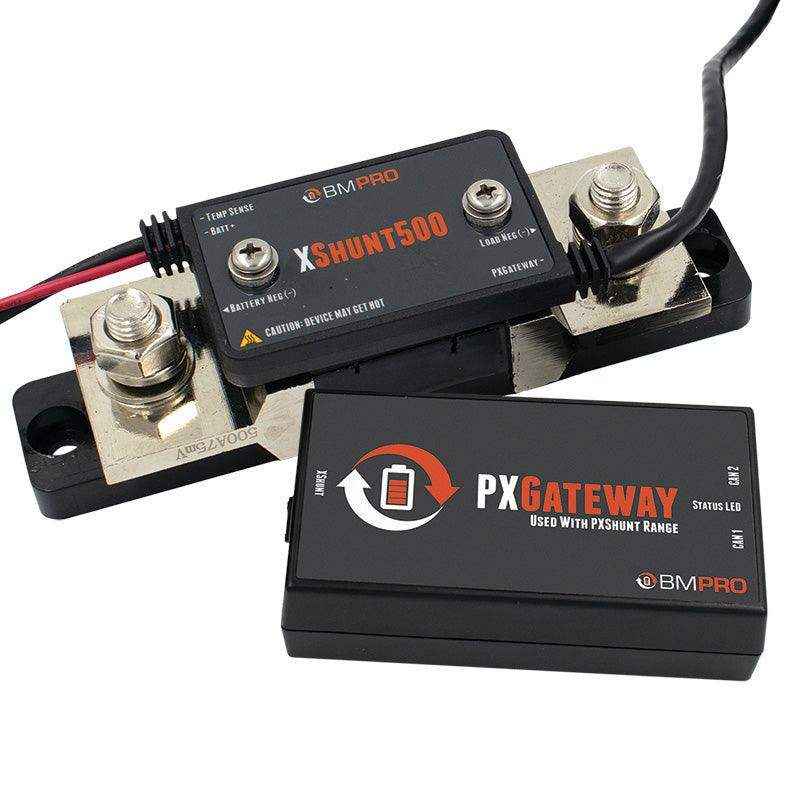

The PXShunt500 comes as part of a two-component system, consisting of the XShunt500 and PXGateway. Together, they are hardwired into your power system, ensuring accurate and real-time monitoring. When integrated with BMPRO’s BatteryPlus35, ASPero, and J35 systems, the PXShunt500 delivers enhanced battery data, keeping you informed of the power available for all your devices.
