BMPRO J35D Battery Management System – Replaced by ASPERO

The BMPRO J35D Battery Management System has been discontinued. For updated technology, please use the ASPERO Battery Management System from BMPro.

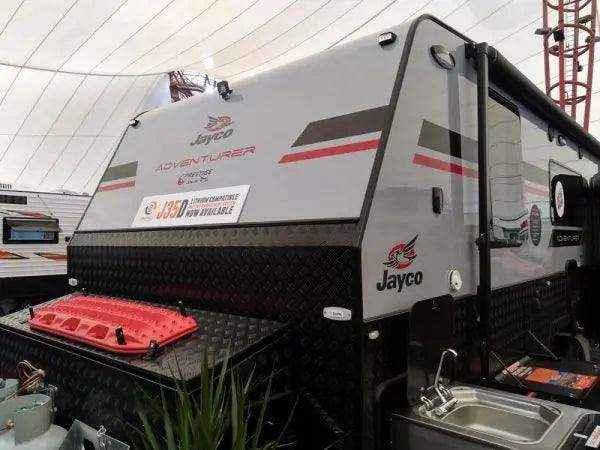

The J35D is a lithium compatible battery management system developed for Jayco Australia. It features an integrated solar regulator and a multi-stage battery charger.

This unit supports charging for both lead acid and lithium (LiFePO4) batteries and manages battery banks up to 600Ah.

The J35D charges caravan batteries from 230-240 Volt mains, solar panels (up to 28 Amp or three panels totalling 450W), and auxiliary sources such as generators and vehicle power.

Battery life is maintained with low voltage disconnect, storage mode, multistage charging, and built-in electronic fuses. The system provides 14 DC outputs for appliances including water pumps, hot water systems, and lighting.

The system can restart the internal Battery Management System (BMS) to recover heavily discharged LiFePO4 batteries before charging.

Compatible with JControl monitors and the JHub app for live monitoring and control of your caravan’s electrical system.

Features

• 14 x 12V DC outputs
• 35A maximum output current
• 30A maximum charging current
• 28 Amp solar regulator
• Lithium (LiFePO4) compatible
• Supports battery banks up to 600Ah
• Low voltage disconnect for lead acid and lithium batteries
• Multistage charging with battery protection
• Built-in electronic fuses
• CAN bus communication
• Thermally controlled cooling fan

Specifications:
Input Voltage: 240 VAC ±10%, 50-60 Hz
Input Surge Current: 40 A (cold start)
Output Current Continuous: 35A (load + battery)
Factory Set Float Voltage: 13.65 V ±2%
Output Ripple Voltage: 150 mV
Over Voltage Protection: 18 V
Over Current Protection: 35–38A (load + battery)
Battery Current Limit: 30A max
Low Voltage Disconnect: 10.8 V ±0.2 (lead acid), 12.0 V ±0.2 (LiFePO4)
Battery Drain After LVD: 7mA
Efficiency: 83%
Operating Temperature: 0°C to 50°C
Weight: 2 kg
Dimensions: 282 mm x 203 mm x 65 mm
