Autoterm

3520a

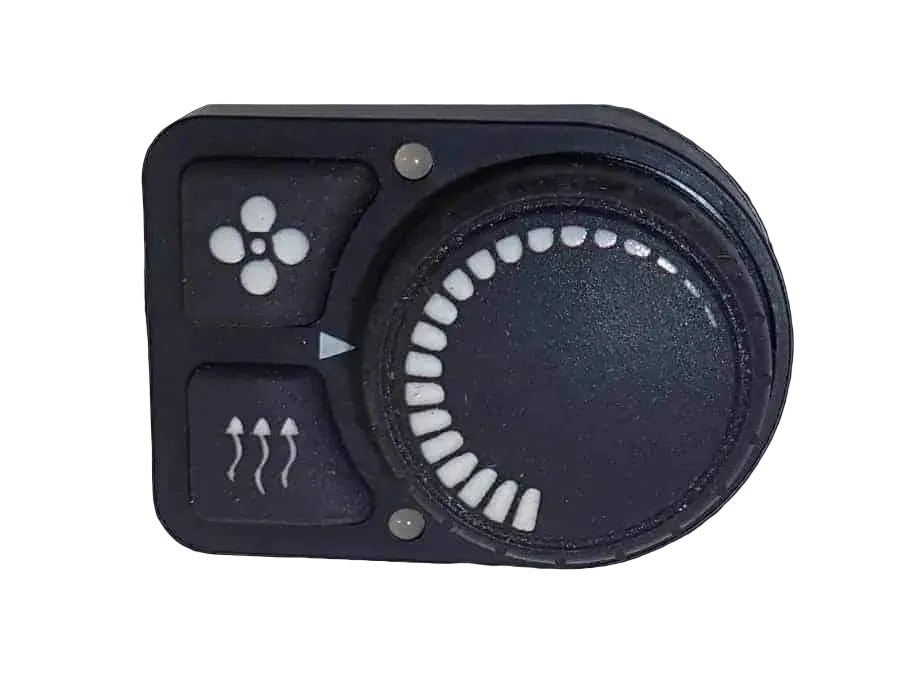

Autoterm Diesel Air Heater Rotary Controller PU-5

We currently have 251 in stock.

Control panel PU-5, assy.3520
This control panel is suitable with all PLANAR air heaters 12V and 24V.
“Power mode” - Designed for quickest possible heating of the space; The heater operates continuously at a set power.
“Ventilation mode” - Designed for air circulation in the space .

If you add a external Temperature sensor (Part Number 1458), then you obtain the following functions:

“Temperature mode” - Designed to heat the space to the required temperature; Heat output decreases as the difference between the desired temperature and the temperature in the space decreases.

“Ventilation during heating” - function (If the external sensor is connected) Designed to maintain the required temperature in the space; After the required temperature is reached, the space heating is stopped and space air circulation is performed;

Controls the space temperature; if the temperature drops below the set point, the heater will start in Ventilation mode.
