120amp Duramax Lithium Battery with Built-in Battery Monitor - Active Bms

The Duramax DML-120Ah lithium battery delivers performance, dependability and reliability.

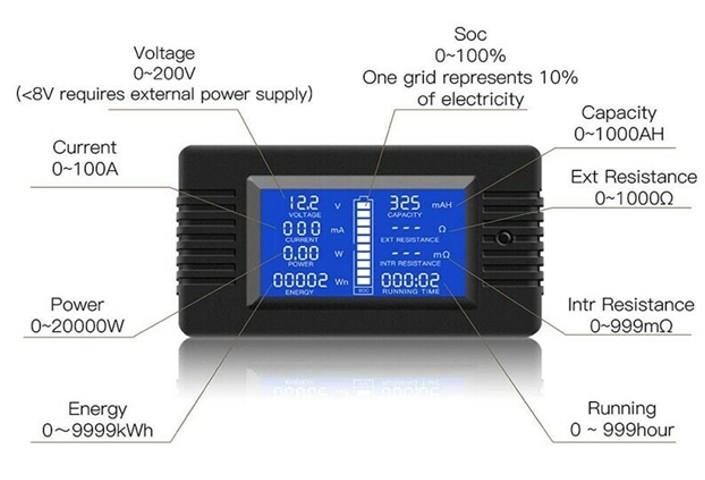

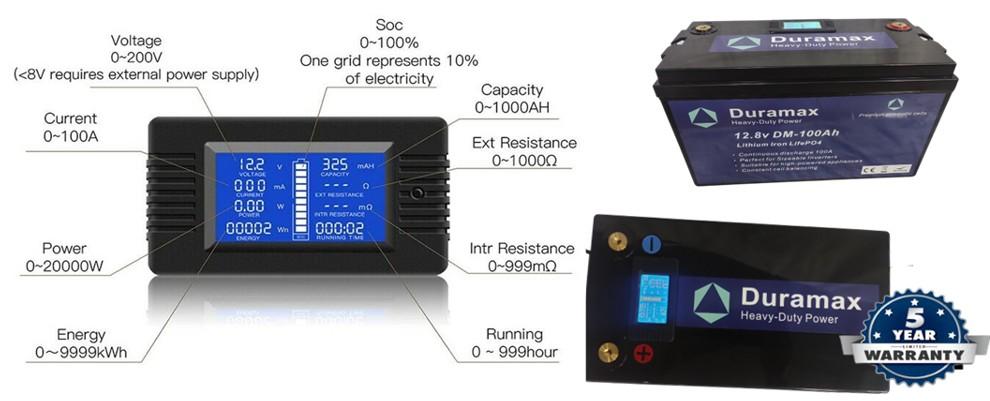

Includes a comprehensive LCD Battery Monitor, giving you a complete readout. Not just voltage but a proper gauge showing your capacity remaining.

Duramax batteries are a High End Designed and Best Practice manufactured battery. Only the best internal components for performance and reliability. This allows Duramax to be backed by a 5 year warranty.

Vibration and Shock Resistant.

Able to provide 120amps of continuous discharge current, 200amps for 5 secs.

LiFePo4 120A BMS Active Cell Balancing

Duramax Lithium Batteries have active process balancing for parallel and series connections providing maximum flexibility for any battery configuration. Connect up to 4 batteries in either Parallel or Series the BMS will provide full time active cell and battery balancing.

Lithium batteries are becoming the replacement for lead acid batteries in RV, Caravan and Off Road campers. With the Duramax DM- series batteries you have the perfect drop in replacement storage battery.

Cell Type

• Prismatic A Grade
• 3.2v 120Ah

Capacity

• 120 Ah

Voltage

• 12.8v Normal Operating
• 14.6v Charge Cut Off
• 10.0v Low Volt Cut Off

Current

• 60 Amp Max Charge Current
• 120 Amp Continuous Discharge
• 200 Amp Peak Discharge (5 sec)

Dimensions

• 345mm Length
• 245mm High
• 190mm Wide

Weight

• 15 kg

Terminals

• T8 - 8mm Bolt Type

Warranty

• 5 Years

DML120
