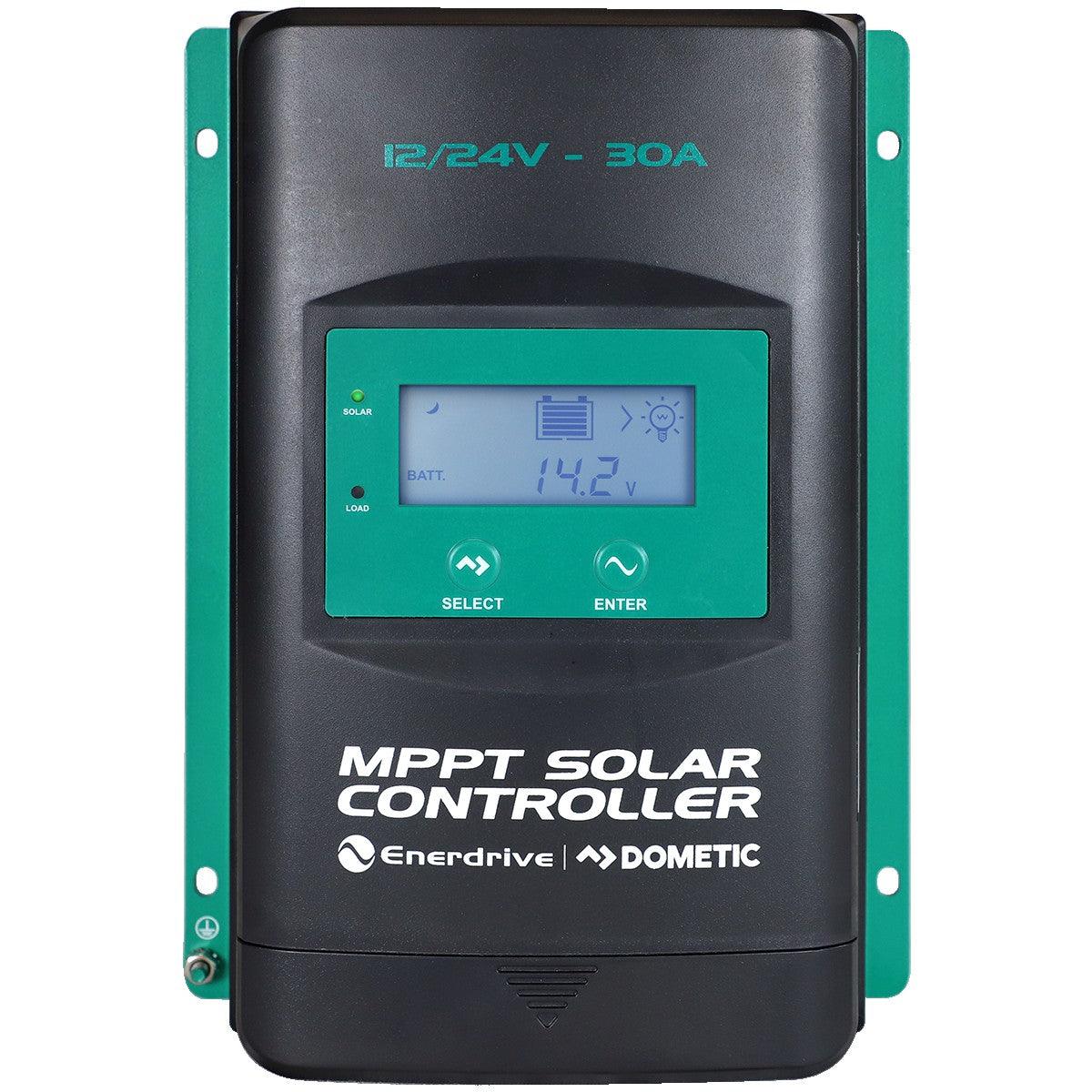

Enerdrive Mppt Solar Controller Solar Regulator - 30amp 12/24V

Key Features:

Advanced MPPT Technology: Utilizes an advanced MPPT control algorithm for quickly tracking the maximum power point (MPP) of the PV array, improving charging efficiency by 20%-30% compared to PWM charging.

Self-Adaptive Charging: Features a three-stage charging mode based on a digital control circuit to prolong battery lifespan and enhance system performance.

Comprehensive Protection: Provides electronic protection for overcharge, over-discharge, PV and battery reverse polarity.

Compatibility: Supports lead-acid (wet and AGM) and lithium batteries.

High Efficiency:

• Tracking Efficiency: Up to 99.5%
• DC/DC Transfer Efficiency: Up to 98.6%

LCD Display: Offers real-time energy statistics and multiple load work modes.

Environmental and Mechanical Parameters:

• Environmental Temperature: -25 to +50°C
• Storage Temperature: -20 to +70°C
• Ingress Protection: IP33
• Dimensions: 230 x 165 x 63 mm
• Mounting Hole Dimensions: 173 x 156 mm, Hole Size: 5 mm
• Maximum Cable Size: 8 AWG (10mm²)

Model: EN43530

• Nominal Voltage Range: 12/24VDC Auto Select
• Battery Voltage Range: 8 - 32V
• Maximum Battery Current Output: 30A
• Maximum Load Current Output: 30A
• Maximum PV Open Circuit Voltage: 100V
• MPPT Voltage Range: (Battery Voltage + 2V) - 72V
• Maximum PV Array Power Recommended: 450W/12V, 900W/24V
• Maximum PV Array Power Allowed (Overdrive): 540W/12V, 1080W/24V
• Self-Consumption: 30mA (12V), 16mA (24V)
• RS485 Interface: 5VDC/200mA (RJ45)

Additional Features:

• Real-time energy statistics function
• Power reduction automatically over temperature value
• Comms port included for future applications

This MPPT Solar Controller is designed for efficient and reliable solar charging in various applications.
