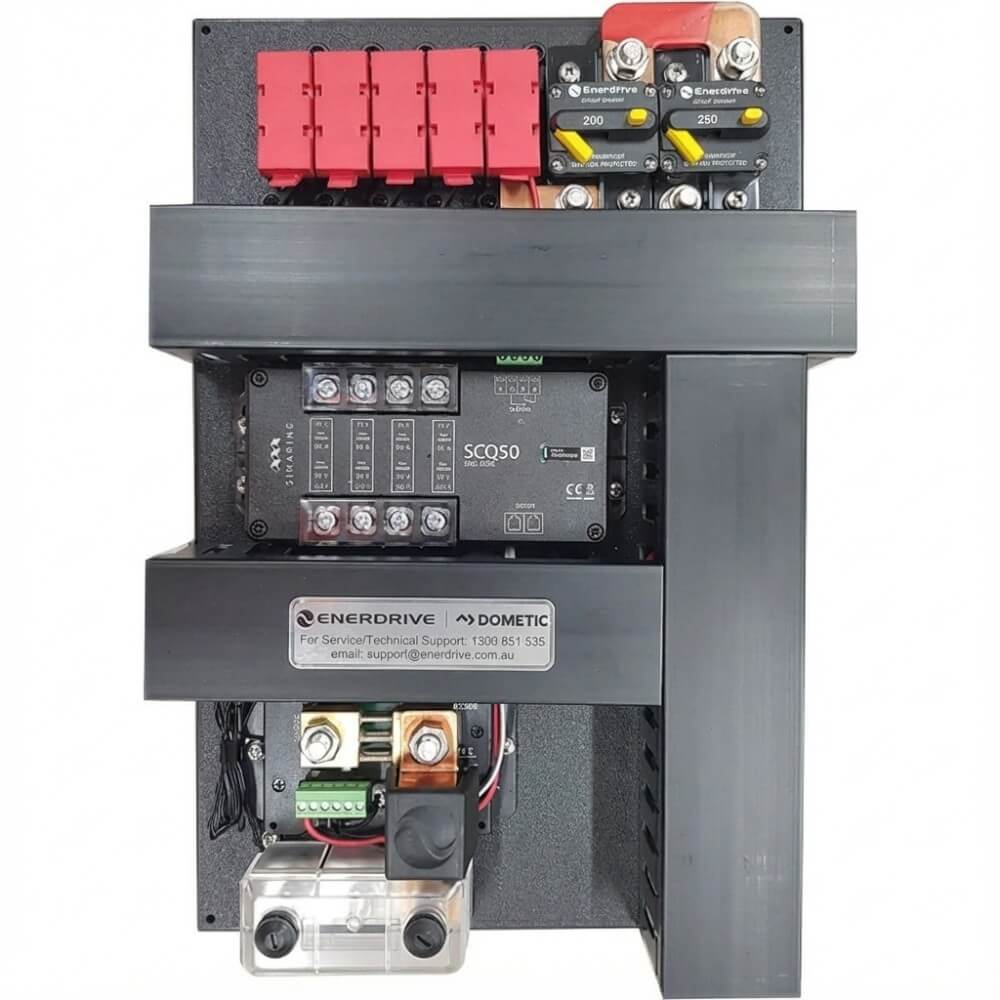

Enerdrive EPDM-03 eSYS Power Distribution Module + Simarine PICO for Marine & 4WD
$1,738.70
Ships from Outside Warehouse – will ship separately from other items.
Regular price
$1,738.70
Sale price
$1,738.70
Regular price
$0.00
Unit price
per
Tax included.
Shipping calculated at checkout.
EPDM-03
This product ships from our suppliers warehouse.
Share this product.
Power Distribution Module (ePDM) Range — Enerdrive Dometic Power Distribution Module
The Power Distribution Module (ePDM) Range by Enerdrive Dometic Power Distribution Module centralises DC distribution with a main positive input, circuit protection, midi/blade fuse positions, and a negative bus bar, available in three versions with or without battery monitoring.
Features
- Main positive input with resettable circuit protection for inverter (model dependent) and system loads
- Fuse positions: 4 × midi fuses for loads/chargers; blade fuse provision for additional loads
- Main negative bus bar: 500 A
- Versions:
- • EPDM‑01 (for systems without an inverter): 120 A main resettable circuit breaker; 4 × midi fuses linked to the distribution breaker; 500 A negative bus bar
- • EPDM‑02 (for systems with an inverter): 120 A main resettable circuit breaker; 200 A inverter circuit breaker (optional 250 A for 2600 W inverters); 4 × midi fuses linked to the distribution breaker; 500 A negative bus bar; ePRO+ battery monitor; 4‑position 100 A fuse block for 24‑hour loads
- • EPDM‑03 (for systems with an inverter): 120 A main resettable circuit breaker; 200 A inverter circuit breaker (optional 250 A for 2600 W inverters); 4 × midi fuses linked to the distribution breaker; 500 A negative bus bar; Simarine SC303 main shunt; Simarine SCQ50 quad shunt; Simarine PICO panel‑mount display
- Applications: 4WD canopies, caravans, camper trailers, commercial work vehicles
-
