Nova Kool RFU9200Dc - 258 Litre Dual Compressor Fridge Freezer

RFU9200DC - Dual Compressor Fridge Freezer

Configuration - 2 Door Upright - freezer on the bottom.
Gross Shippng Weight: 56kg's

Voltage: 12 or 24 Volts DC (Optional AC/DC available)
Compressor: Danfoss BD35F x (2)
Control Module: Danfoss 101N0210 x (2)
Total volume: 258 litres ( 9.1 cu.ft. )
Fridge space: 188 litres
Freezer space: 70 litres

Cut Out Dimensions

• 1342 mm Height
• 590 mm Width
• 630 mm Depth

Overall dimensions (Including flange)

• 1355 mm Height
• 629 mm Width
• 650 mm Depth (including latch handle)

Standard Options

• Multi-Voltage module for AC/DC operation switches automatically between AC and DC power sources: 12 or 24 VDC and 100-240 VAC 50/60Hz (this model requires (2) modules)
• White or Stainless Steel door panels (black panels are standard)
• Right or left hand door swing (right is standard)

Note on door swing:
If you require a left hand door swing (hinge on the left) please specify this requirement when ordering and we will change this for you: there is no charge for this service.

• LED interior light is included on this model

Feature:

258 Litres Total Internal Volume:

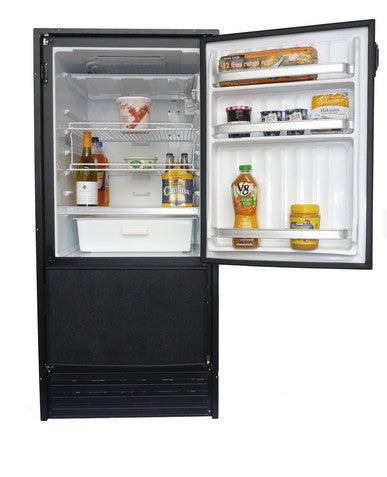

188 litres of fridge space at the top where everyday items are easy to reach.

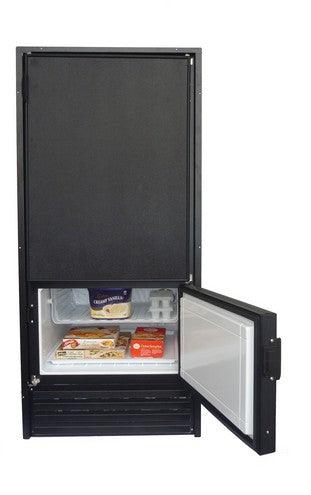

The 70 litre freezer space is on the bottom.

The RFU9200 is the latest innovation from the Nova Kool team.
Most DC refrigeration systems employ a single compressor and thermostat so the freezer temperature is dependent on the fridge setting. The RFU9200 employs a dual compressor system allowing independent operation of the the fridge and freezer compartments. More precise temperature control and colder freezer temperatures are the key benefits of a dual compressor system.

Two independent refrigeration systems in one

• Thermostats in fridge and freezer for independent temperature control
• Colder freezer temperatures -20C or lower
• Mounting flange included
• LED interior light in fridge compartment

Cut Out Dimensions:

1342 mm (H) X 591 mm (W) x 630 mm (D)

The Nova Kool RFU9200 DC Fridge Freezer is equipped with 2 highly efficient variable speed Danfoss BD35F compressors that are designed for use with 12 and 24 volt DC systems in boats and caravans.

Each compressor draws 5 amps when running on 12 volts: average power use will vary depending on ambient temp. how often the door is opened, thermostat setting etc.

Features:

• Positive latch system
• Mounting Flange Included
• Ventilation intake built-in at the bottom
• Storage for tall bottles
• Shelves are a powder coated wire for durability
• Reversible door swing
• Replaceable door panels for a custom finish to your interior
• Environmentally sound 134a refrigerant
• CFC free urethane foam in cabinet and doors
• Magnetic door gaskets for positive seal
• Stainless fasteners and hinges used throughout
• Maintenance friendly and efficient static condensers
• Low battery protection to help prevent full discharge of batteries

Multi-Voltage Options:
Optional: AC/DC: 12 and 24vac and 100-240vac 50/60HZ
Please contact us for price and availability of this option
