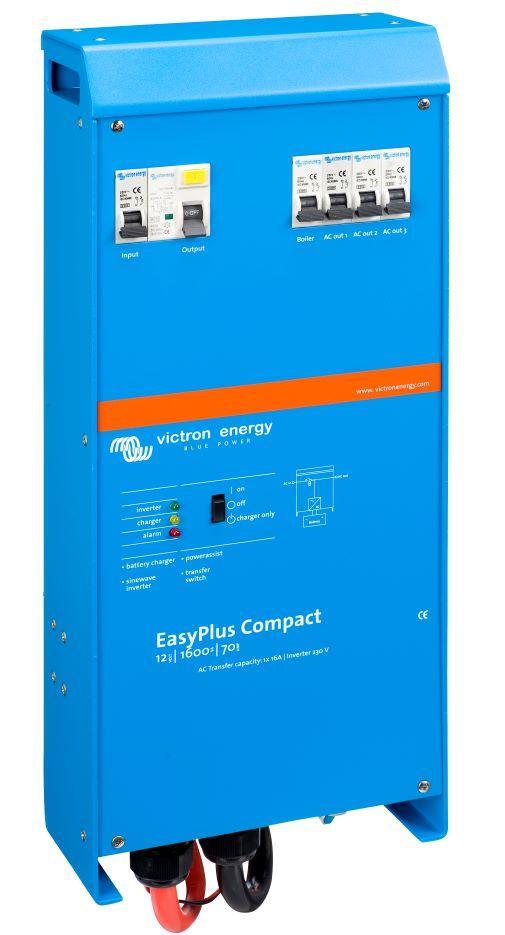

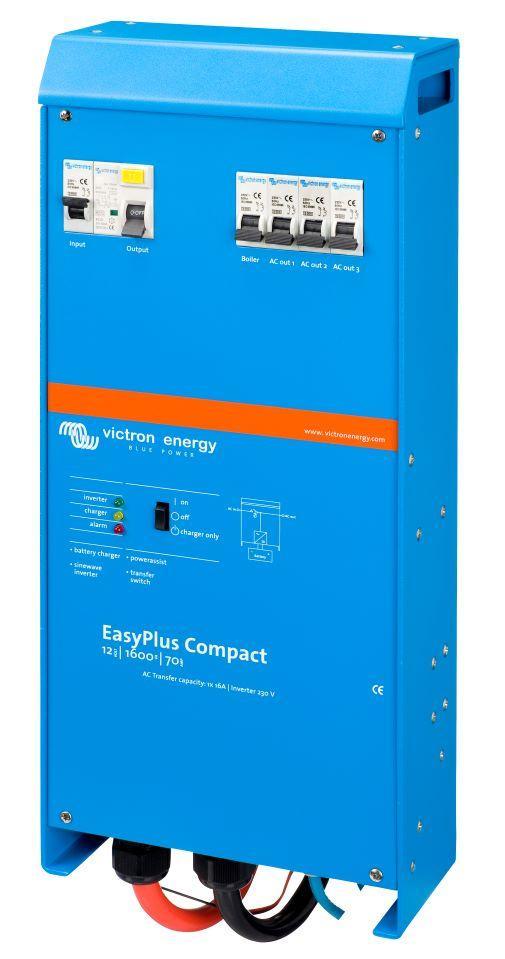

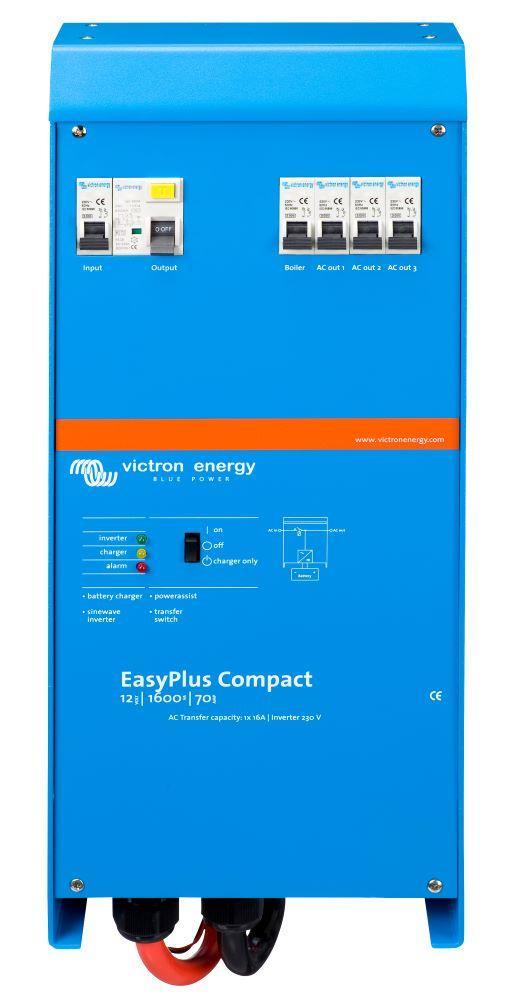

Victron Blue Power EasyPlus Compact 12V Model 1600-70-16

Multi-functional power solution The EasyPlus is a multifunctional energy system consisting of a powerful sine wave inverter, a sophisticated battery charger, a high speed AC transfer switch and AC distribution in a single light weight and compact enclosure. The system has been designed for those who want to enjoy the comfort and freedom of a complete energy system without spending time on the installation of separate components and difficult technical procedures

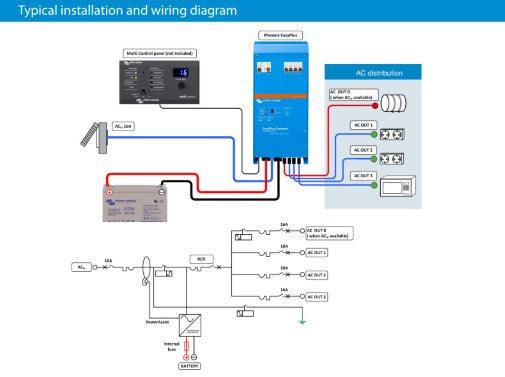

  • Step 1. Select a suitable place for the EasyPlus (as close as possible to the batteries) and install the wall mounting bracket. Attach the EasyPlus to the bracket and secure it with the screws provided.
  • Step 2. Connect the shore/generator input power and the outgoing circuits (including dedicated water heater feed) to the EasyPlus.

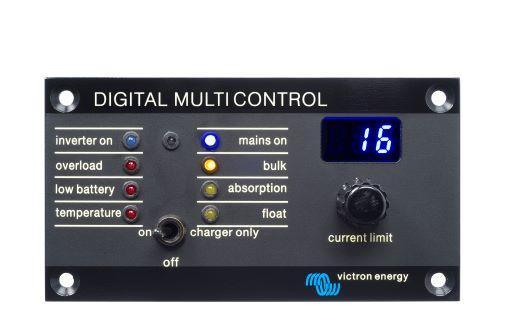

  • Step 3. Connect the control panel (optional) with the UTP patch lead.
  • Step 4. Connect the battery cables and temperature sensor to the batteries (also supplied as standard).
  • Step 5. Switch on the RCD, the AC distribution and the inverter/charger and the system is ready to use
