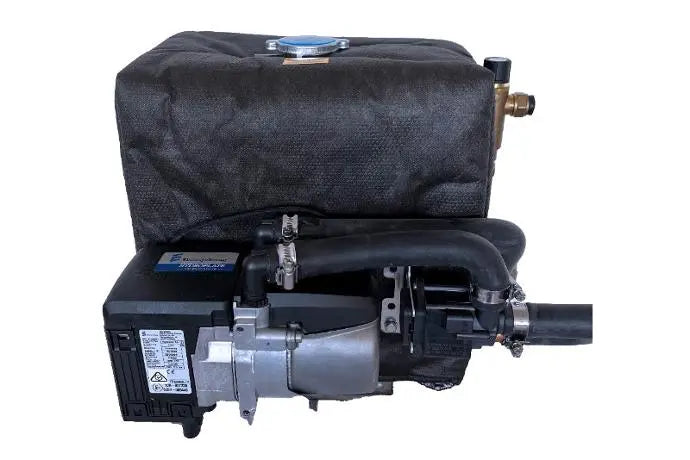

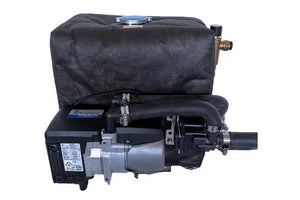

Eberspächer Hydroplate Hydronic HS3 D5E Diesel Water Heater

Elevate your motorhome, caravan, or camper experience with the Eberspächer Hydroplate Diesel Water Heater. Designed with precision and crafted for diverse applications, it's the ultimate solution for on-the-go comfort.

Key Features:

• Versatile Application: Ideal for Motorhomes, Caravans, Campers, and more.
• Fuel Flexibility: Operates using the vehicle's existing diesel tank or a designated tank.
• Efficient Operation: 12V low amp draw ensures constant 40°C water outflow with a flow rate of 5-10 litres/minute.
• Air Heating Option: An additional air heating matrix can be integrated to supply desired temperature air, offering a comprehensive off-grid hot water and air heating solution.
• Quick Heat-Up: In just 10-15 minutes post activation, enjoy a steady flow of 40°C hot water.
• Operational Mobility: Designed primarily for stationary use, but fully functional while on the move.

Specifications:

• Power Supply: 12V DC
• Optimal Flow Rate: 5-10 litres per minute for uninterrupted hot water supply.
• Model: Eberspächer HS3 D5E Hydroplate Basic Kit 292135300019 (29.2135.30.0019)
• Variation: D2L AS3 12V 1 OUTLET E/S PRO KIT

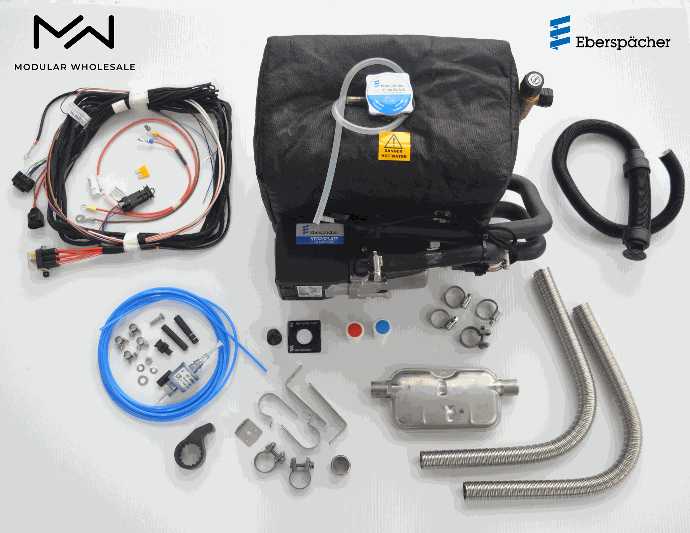

Kit Includes:

• HYDROPLATE HS3 and Tank Assembly: Ensures high performance and durability.
• Wiring Harness: Complete with provision for a basic On/Off Switch (included).
• Fuel Metering Pump: Includes pump holder for steady fuel supply.
• Fuel Line: 6-meter length ensures flexibility in installation.
• Exhaust System: Comes with a 2m stainless steel exhaust pipe and silencer.
• Air Intake: 0.5m air intake tube for efficient operation.
• Miscellany Pack: Screws, washers, clamps, P clips, zip ties, fuel line joiners, and more. Also includes a warranty card and a QR code for the digital manual.

Warranty Period:2 Years

Heating Capacity1300W to 4300W

Voltage12 V

Fuel Consumption (Litres/hour)0.59 l/h (Large) | 0.15 l/h (Small)

Weight12kg

Optimum Water Flowrate (Litres/minute)5-10 l/m

Fuel TypeDiesel

Custom Solutions: We also offer optional fan matrix units for specific needs and are eager to discuss your unique requirements further. Experience the epitome of comfort and efficiency with the Eberspächer Hydroplate.
