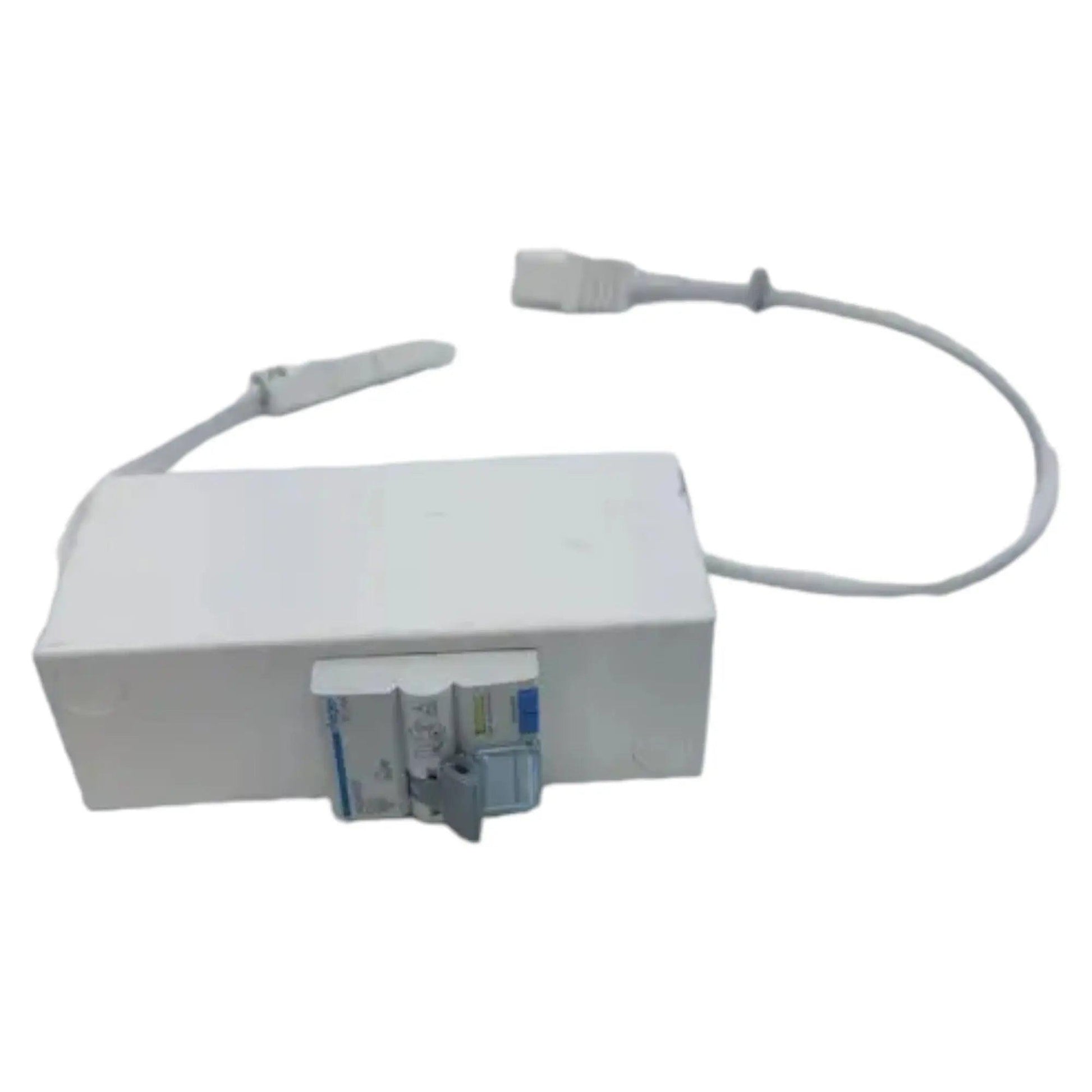

C Style CMS Cable to LEC RCD to Connect with Enerdrive invertor

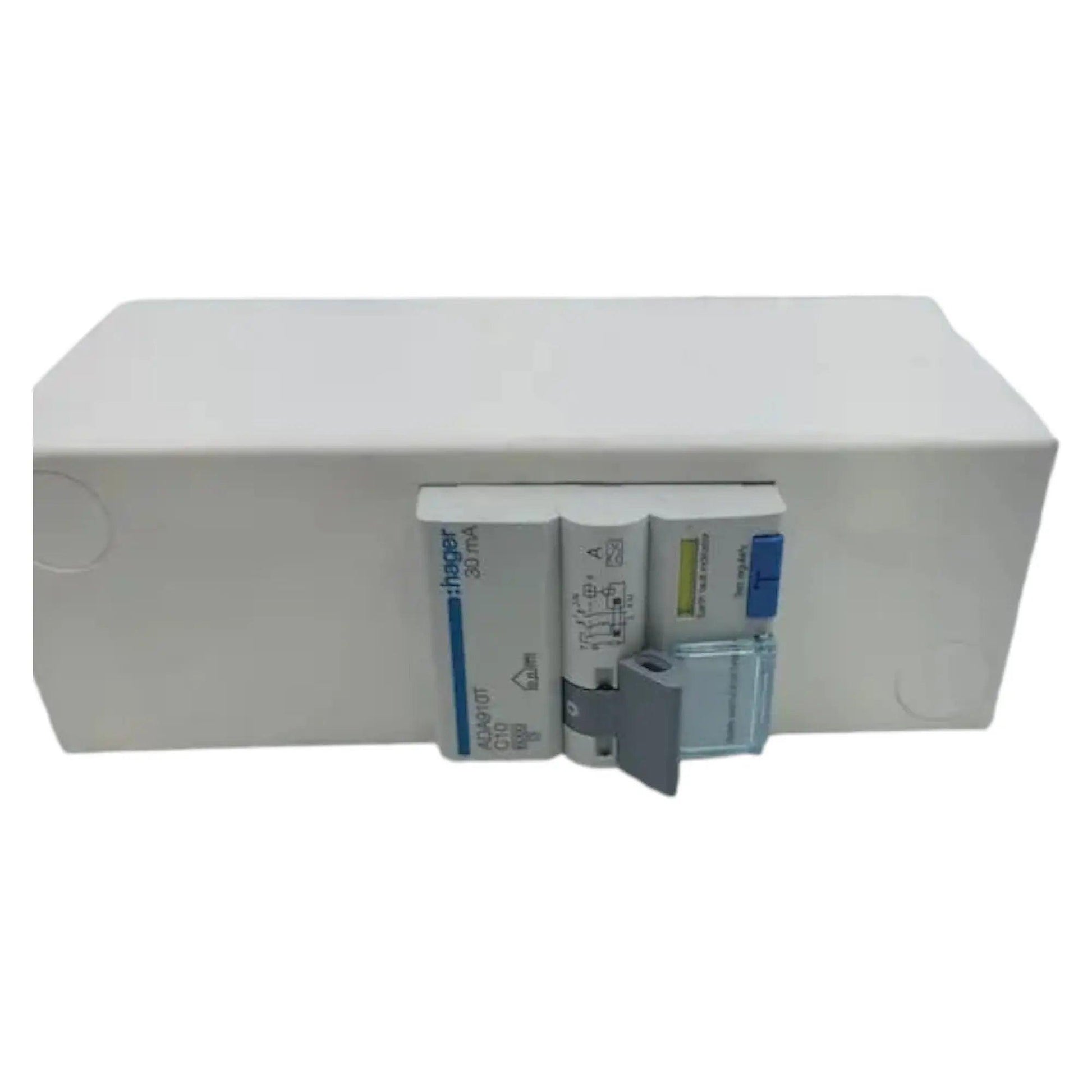

C Style to IEC RCD (10A/30mA)

CMS-RCD-IEC-C13OUT

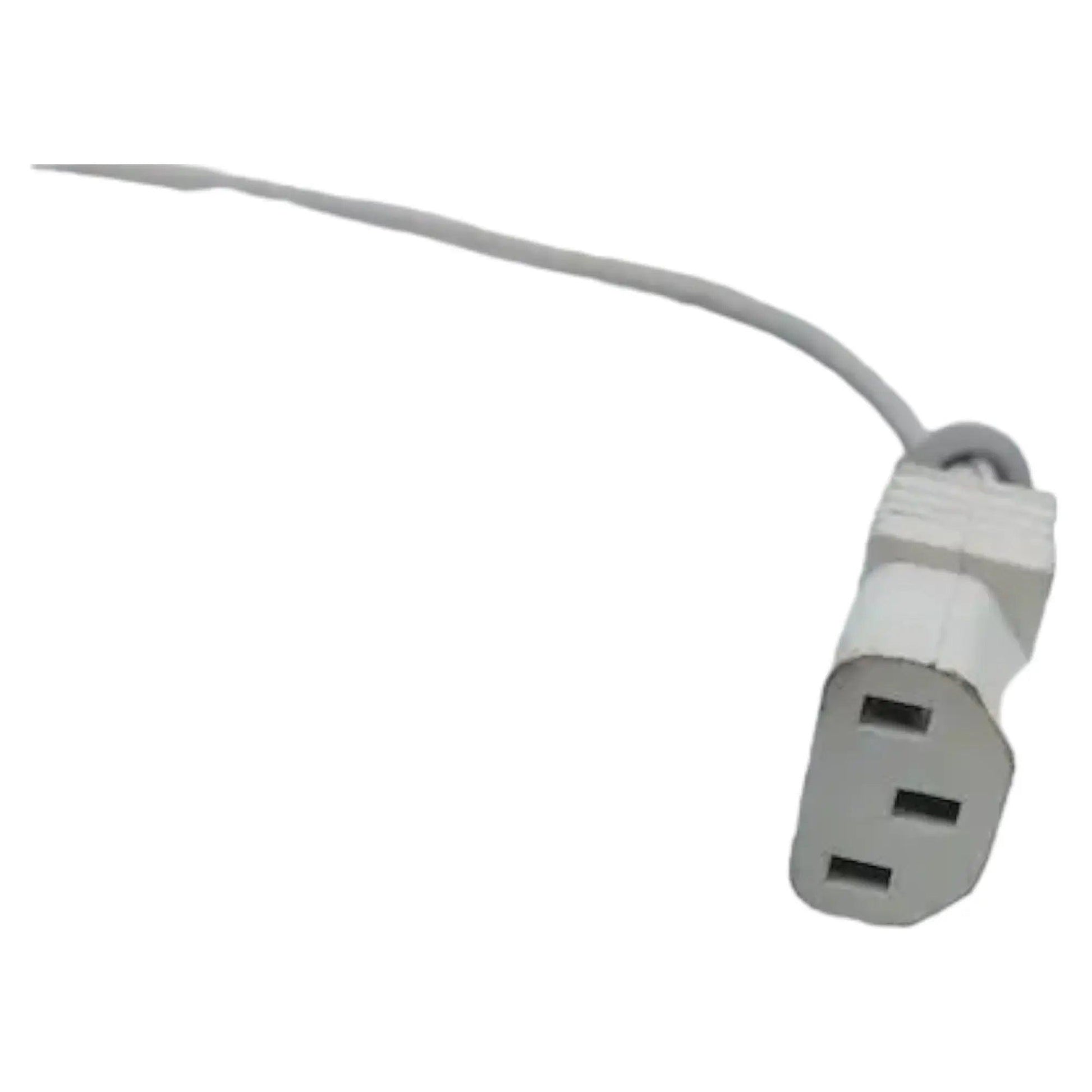

These plug directly into the IEC connector on a Enerdrive Invertor and connect to C type CMS power points etc.

Key Features:

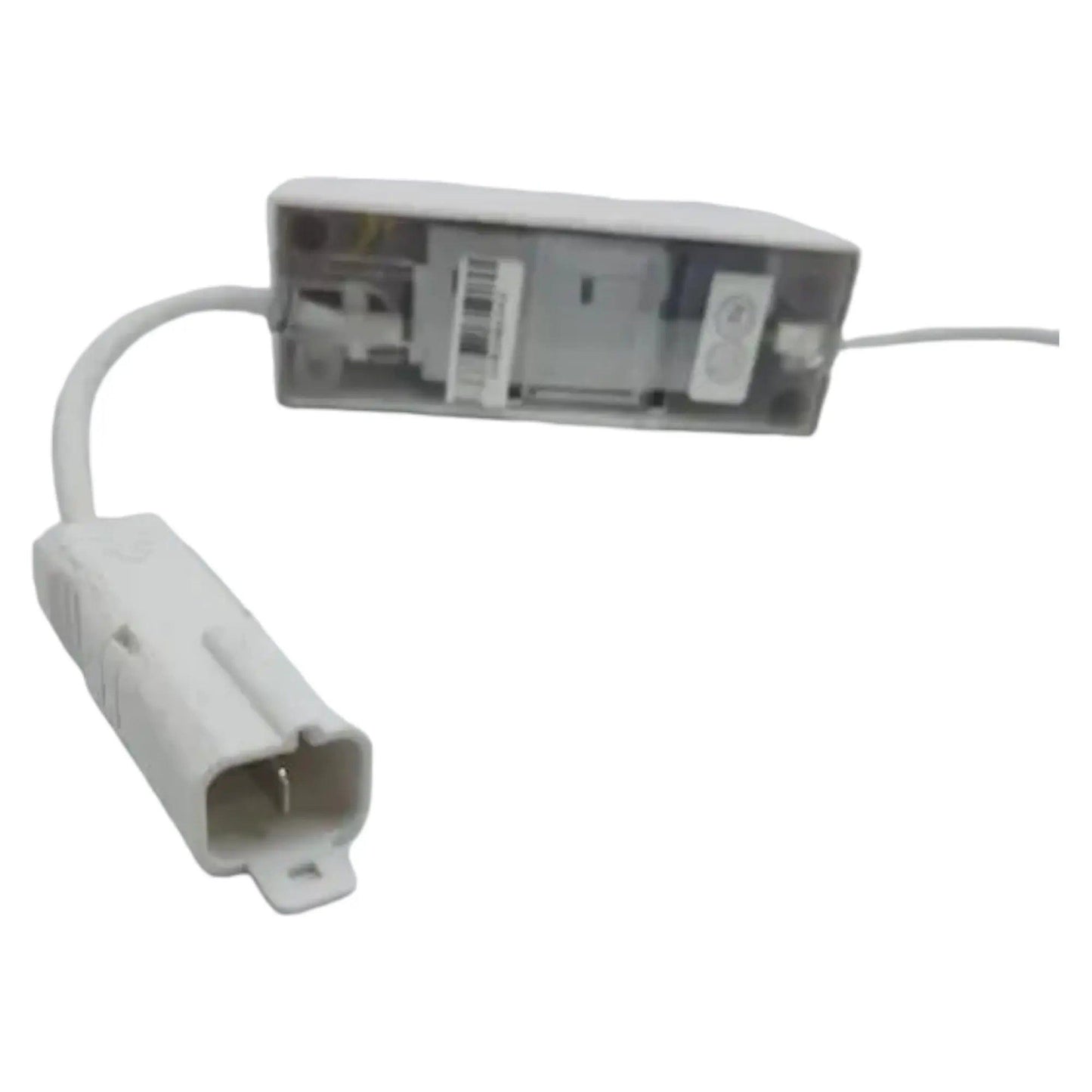

Product Overview: The C Style CMS Cable to LEC RCD does not fit Jayco "J" type connectors.

DIY Installation: CMS Electracom offers DIY AC power points and cables for easy installation in vehicles, reducing electrician time.

Setup: A typical system includes a power inlet, a 16A circuit breaker, and connected power points, with an option for an external outlet.

Standards Compliance: CMS components meet Australian and New Zealand safety standards. Each circuit needs a 16A circuit breaker or RCD.

Design Tips: Cables have sealed ends and need extra length for fitting and replacement. Power Points need a recess depth of 32mm, with mounting blocks available if needed.

CMS Electracom manufacture a range of DIY power points and cables that can be soft wired together. CMS products allow the DIY builder to fit many of the 240V cables and power points into the walls of the Motorhome or Caravan during construction, and therefore limit the onsite time of a qualified electrician to the final inspection and testing.

A standard set-up would include the CMS power inlet that accepts 240V power into your RV via a 15amp extension lead. A CMS circuit breaker has a loom that connects to the power inlet then off to the first power point. A second cable then also connects to the rear of the first power point and heads off to the next power point. This continues around the RV.

Not suitable for J type connections
