TWIN-CABLE-6mm-30

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 6mm 30M

We currently have 200 in stock.

Ships from outside warehouse - not available for pick up - will ship separately from other items.

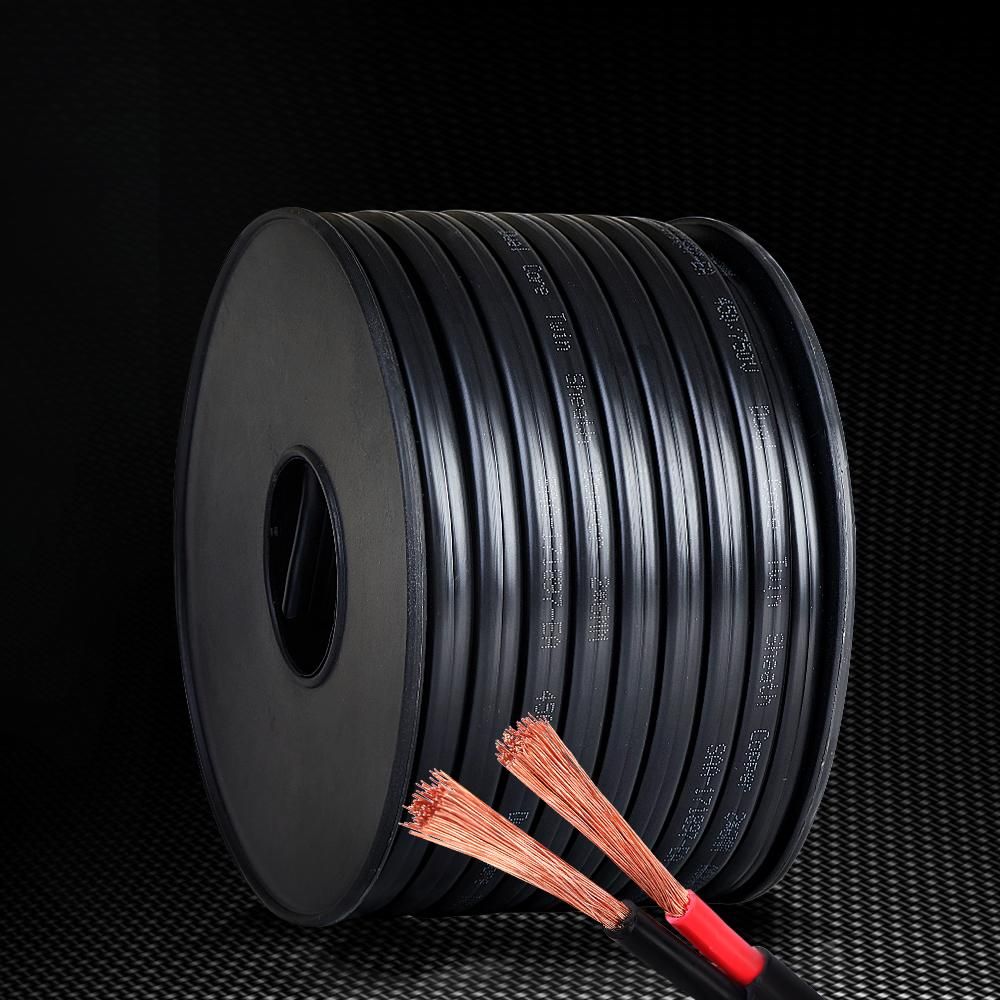

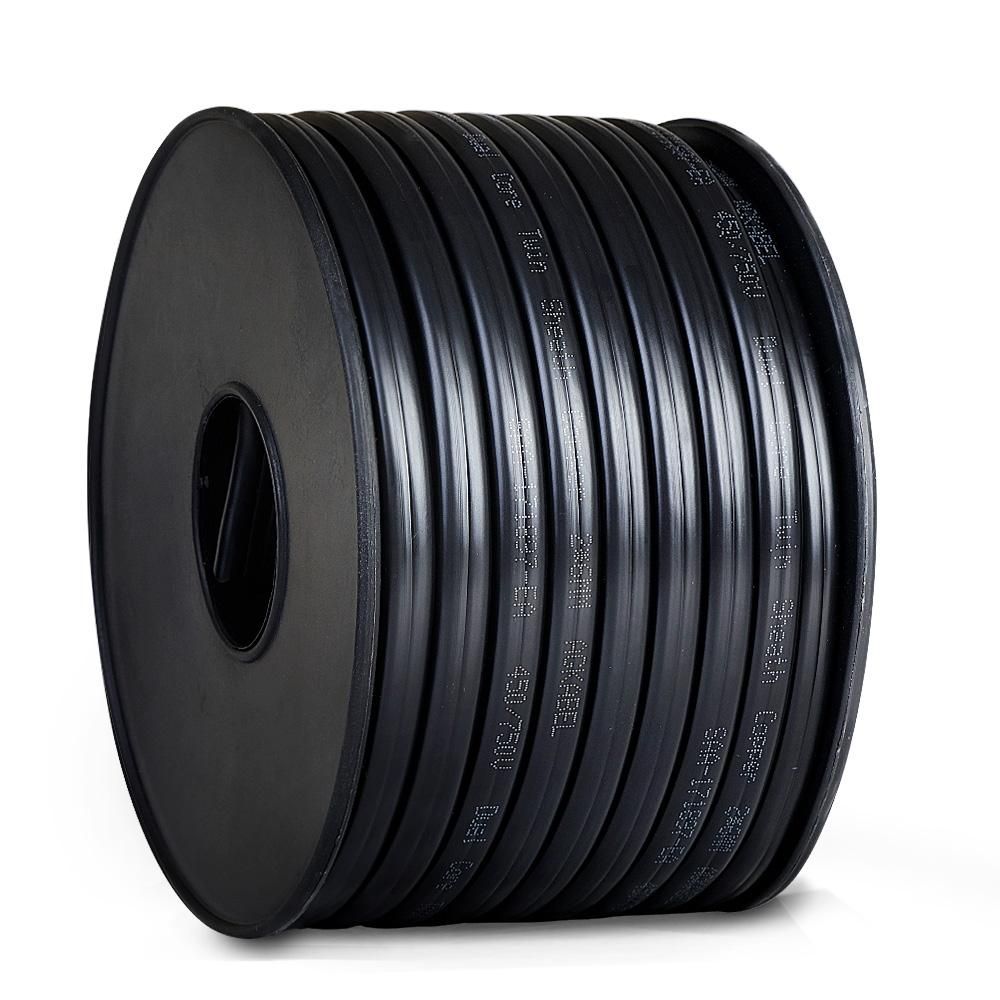

Cable Sheath Automotive Wire - 6MM

Our 6MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:
* 6MM twin sheath automotive cable
* Oxygen-free copper core conductor
* Low eccentricity

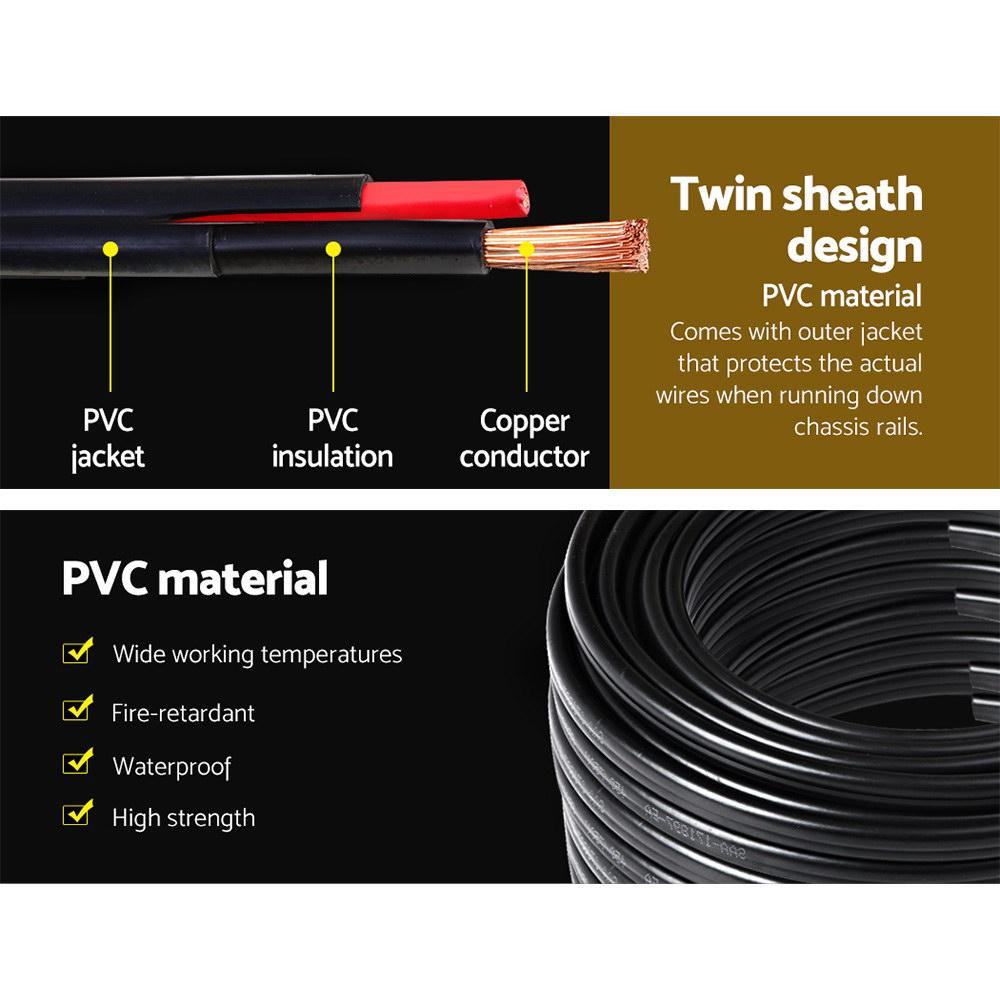

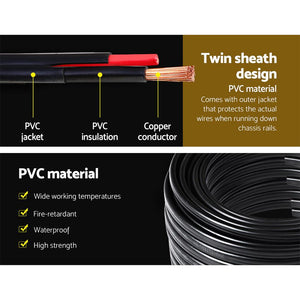

* Reinforced PVC material
* SAA-certified
* RoHS
* Can normally work up to 450V AC/DC

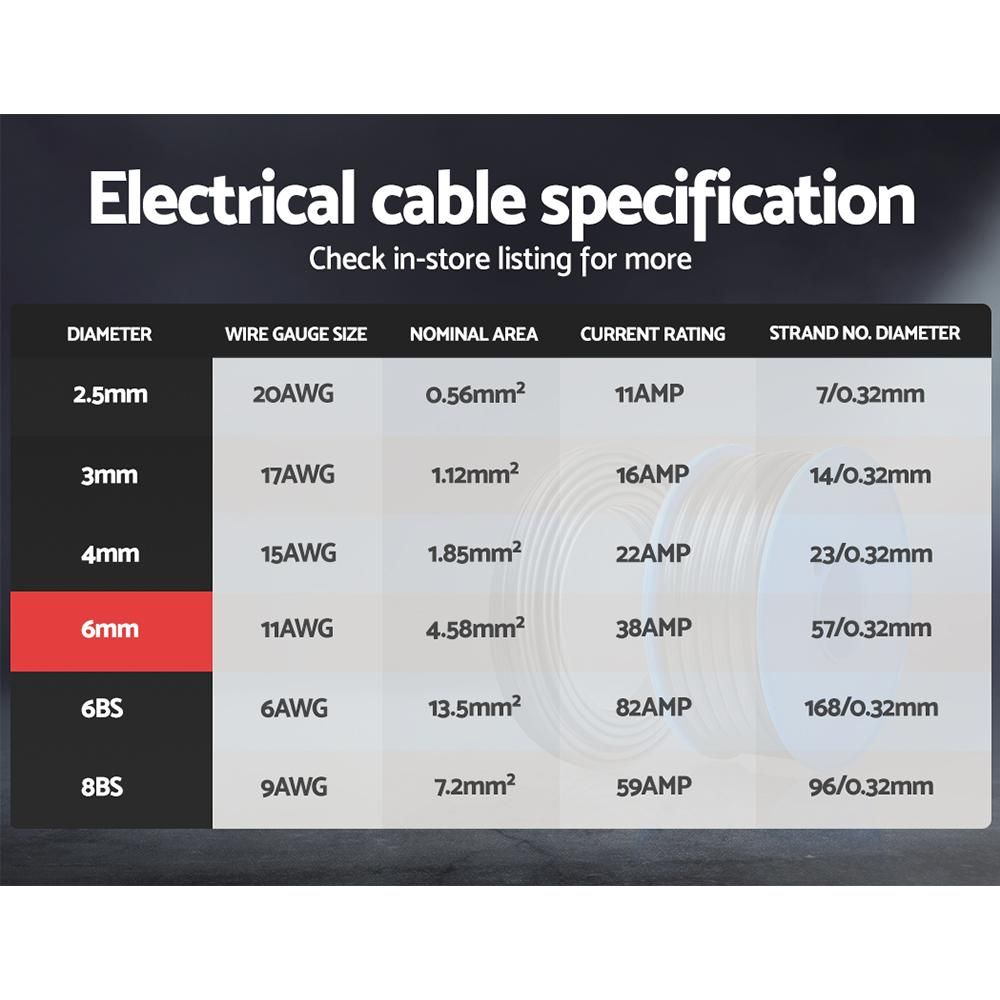

Specifications:
* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808
* Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 38
* No. of cores: 2
* Cable Length: 30m
* Cable diameter: 6mm
* Strand no. diameter: 57/0.32mm
* Nominal area: 4.59mm2

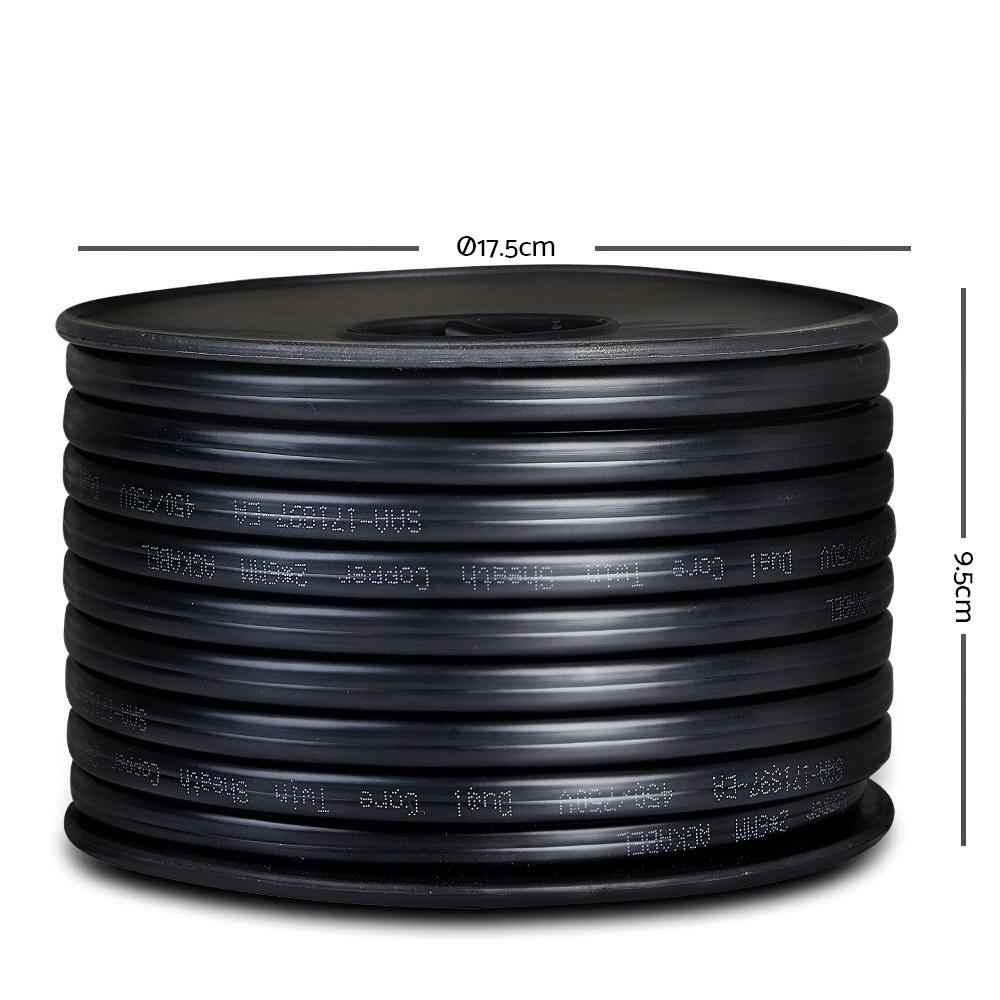

* Nominal O.D.: 5.7mm x 9.6mm
* Colour: Black sheathing
* Conductor resistance 4.01O/Km(20?)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%


Package Content:
1 x Twin Core Cable
1 x Cable Spool
