Twin-CABLE-3mm-100

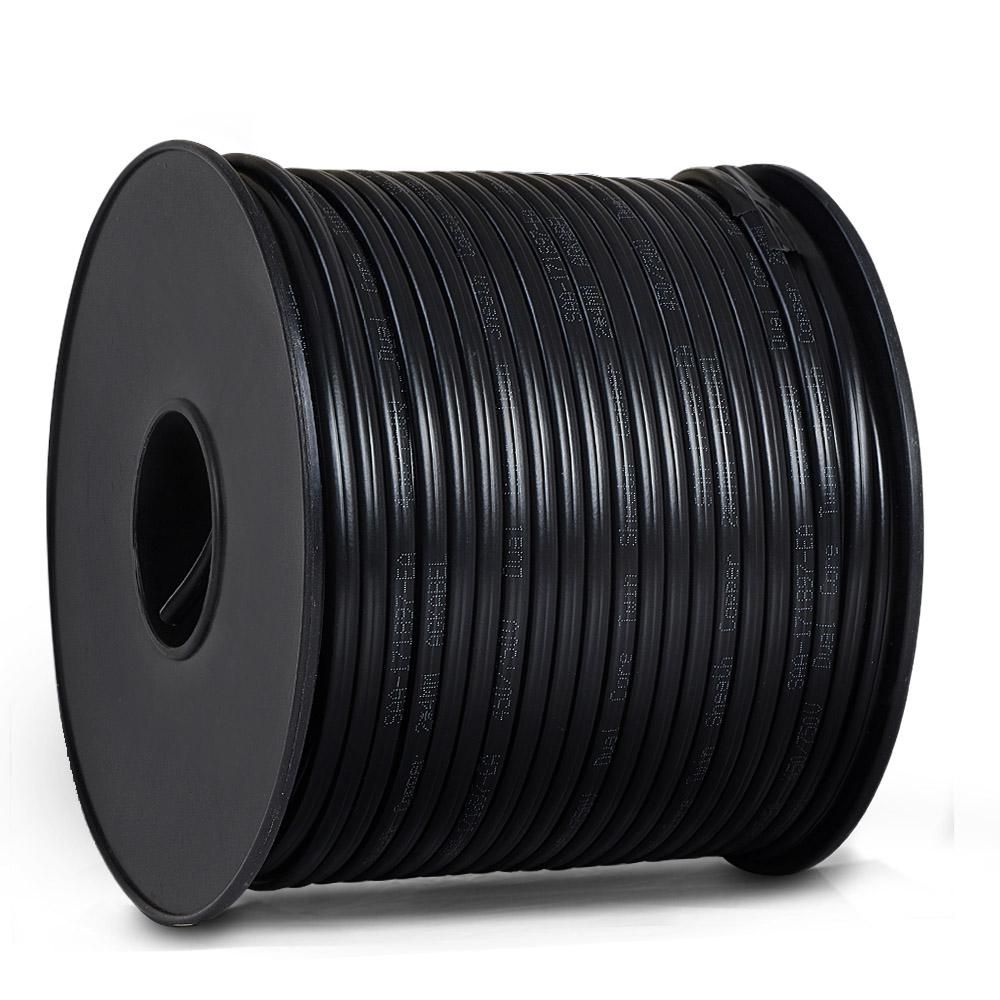

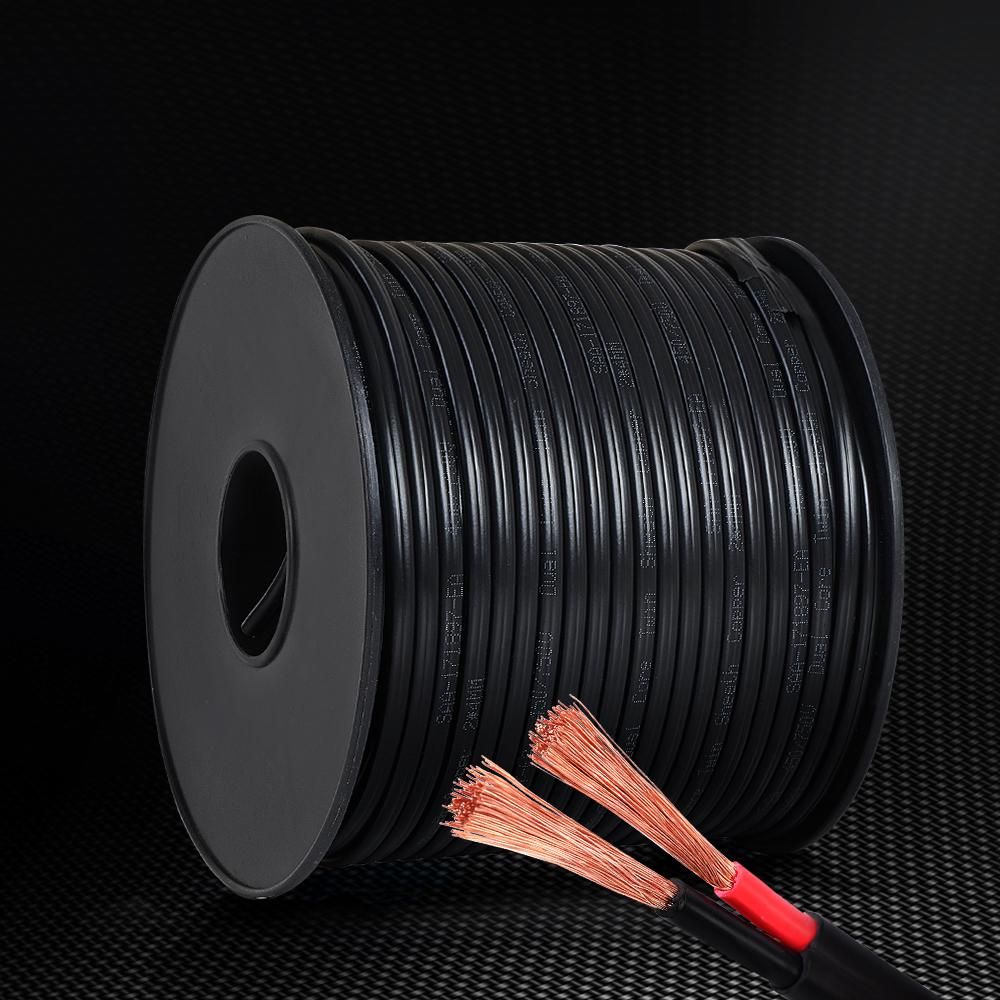

Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 3mm 100M

We currently have 9 in stock.
9 items left

Ships from outside warehouse - not available for pick up - will ship separately from other items.

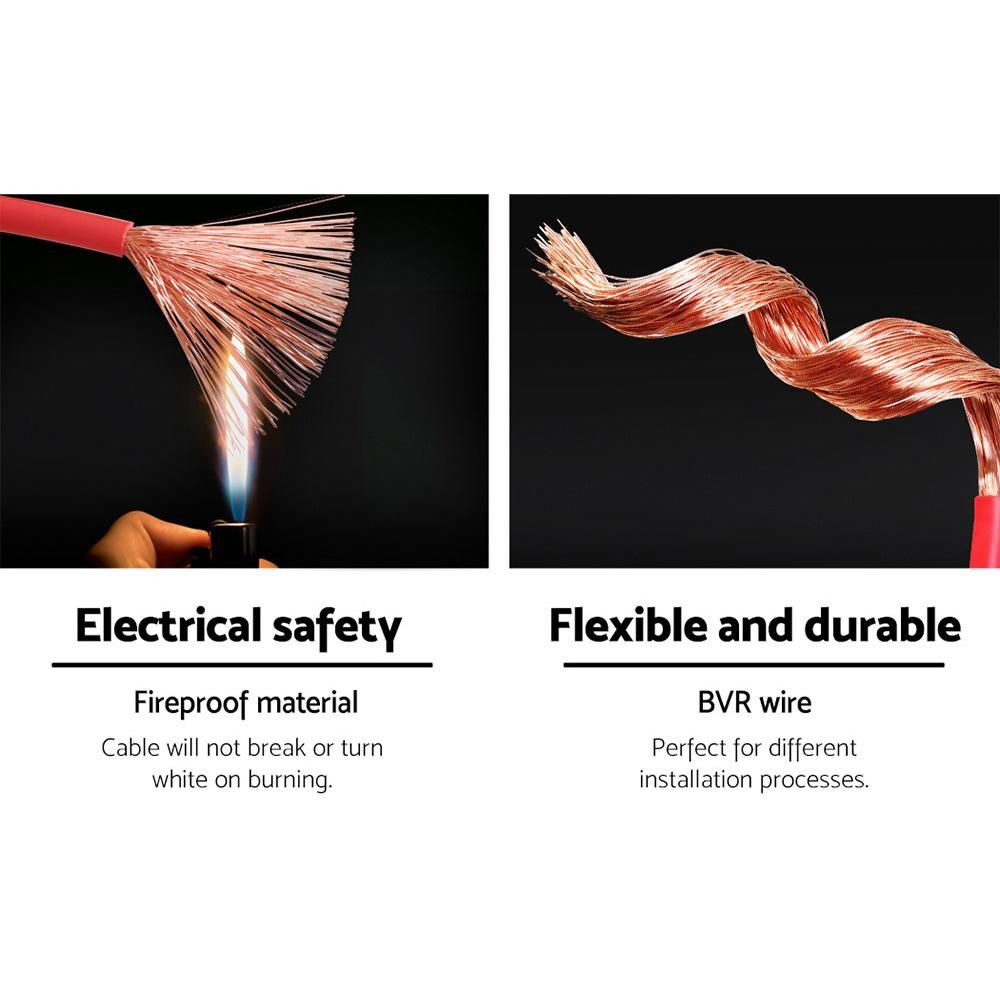

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features

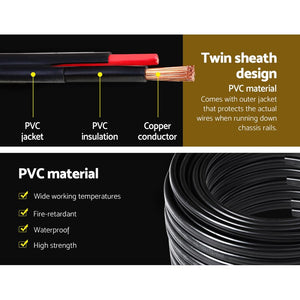

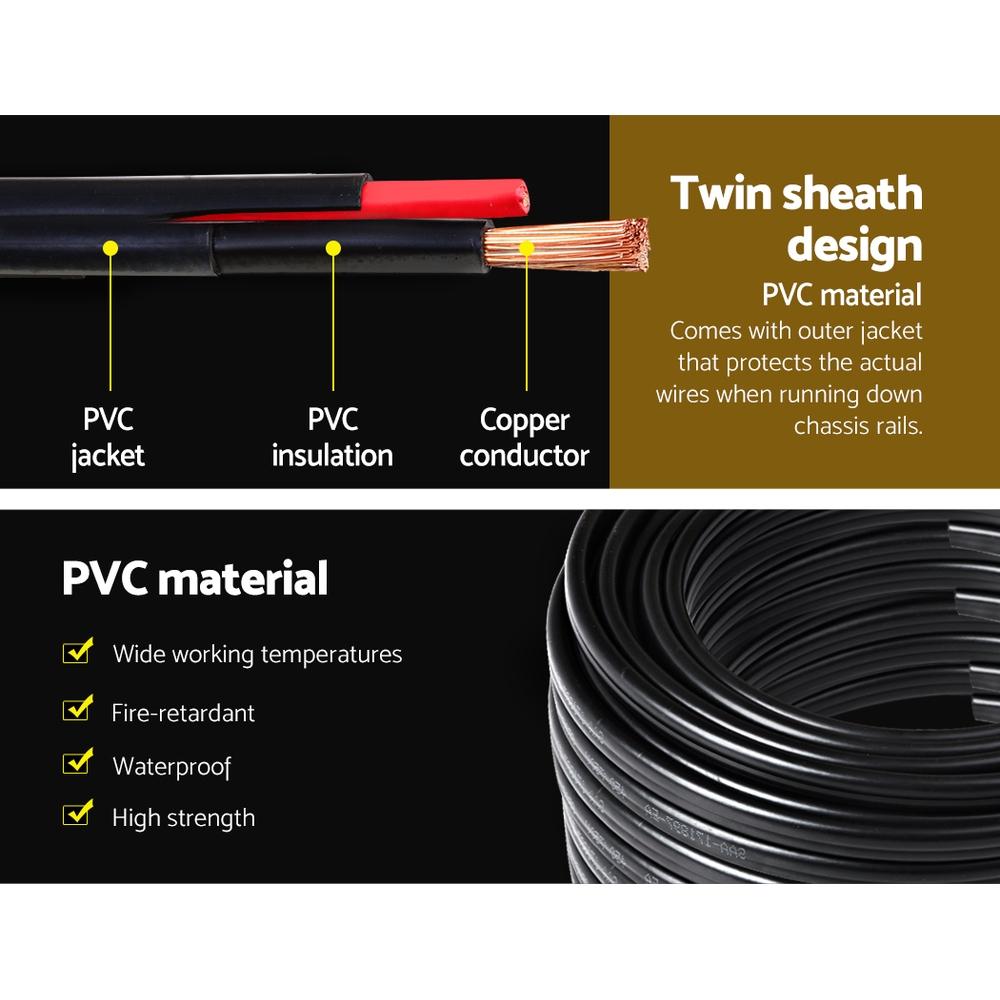

3mm twin sheath automotive cable
Oxygen-free copper core conductor
Low eccentricity
Reinforced PVC material
SAA-certified
RoHS
Can normally work up to 450V AC/DC

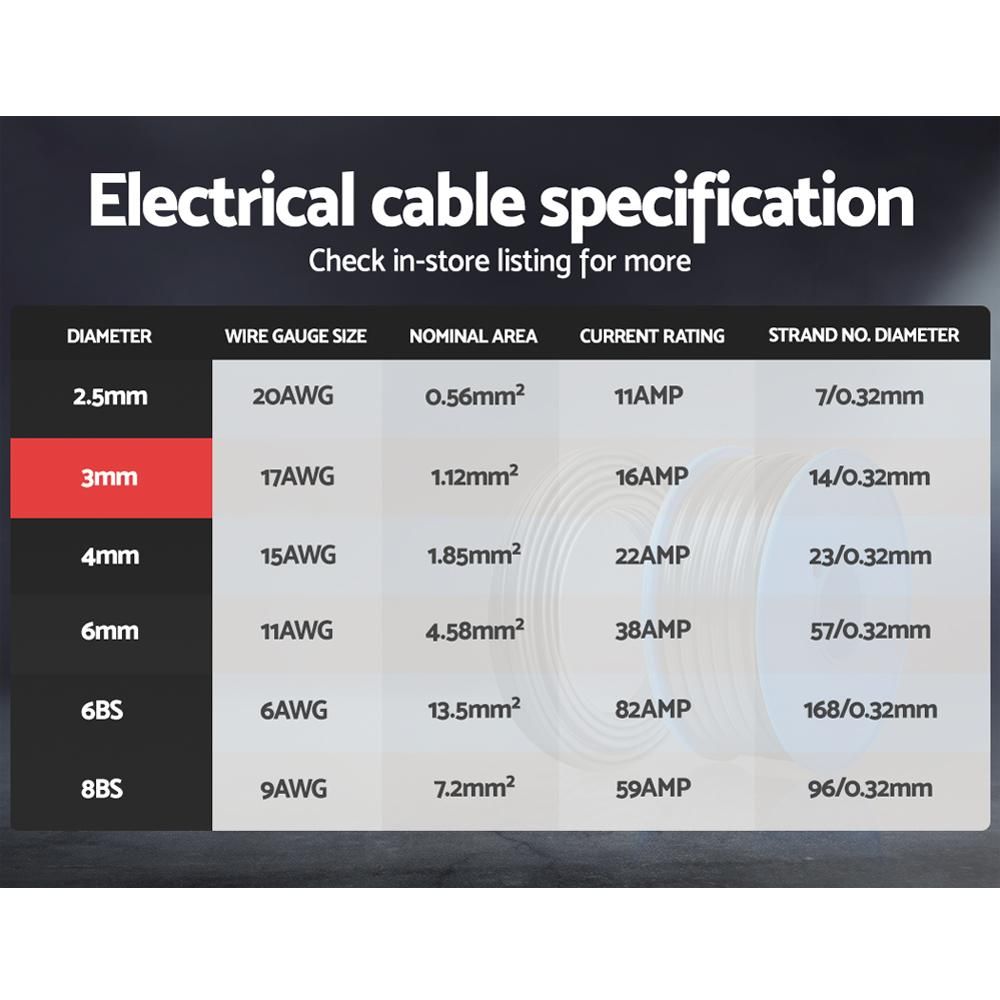

Specifications
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 16
No. of cores: 2
Cable Length: 100m
Industry Equiv. : 3mm
Strand no. diameter: 14/0.32mm
Nominal area: 1.13mm2
Nominal O.D.: 3.3mm x 5.5mm
Colour: Black sheathing
Conductor resistance 17.0Ω/Km(20℃)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength ≥ 12.5Mpa
Unaged acceptable ultimate elongation ≥130%

Package Content
1 x Twin core cable
1 x Wire spool
