Dometic Perfect Charge Battery Charger 35amp 12volt - No Longer Available

DOMETIC PERFECT CHARGEMCA1235 Battery charger

These are a great value charger - well designed and gentle on batteries - you can charge multiple battery banks or just one - ideal for Caravan and Motohome.

Designed for the marine market so you know it is built to be relied on.

The latest charging technology, ultra-compact design and lightweight. This automatic battery charger is fast and easy to install. It can charge two batteries simultaneously and be used all over the world with its input voltage range of 110–230 V.

Ideal for frequent travelers and globetrotters.

Starter batteries and supply batteries are designed for different tasks. To start the engine, starter batteries must initially supply a high current level and will then serve as an energy buffer with smaller partial cycles. Supply or on-board batteries, in contrast, are discharged at lower current levels over longer periods of time and then charged again. This means they are subjected to considerably higher loads. These special features must be considered by the charging technology to protect the batteries from damage and ensure they have a long service life.

The IU0U battery chargers function using a unique six-stage charging cycle. They provide optimum charging for all gel, AGM and wet batteries, because they charge quickly and gently at the same time. Gentle charging of 12 V batteries with optimised 6-stage IUOU charging technology Simultaneous charging of 2 battery banks plus the starter battery Very compact design, light weight and easy to install Sleep mode for quiet charging at half power - ideal at night or in parking spaces with low electrical circuit protection

Comes standard with a bus interface for smooth integration in existing bus systems

Compatible with the Dometic MPC 01 battery controller for perfect power management Gentle charging of 12 V batteries simultaneous charge of 3 batteries Easy to install Dometic PerfectCharge MCA1235 has 3 battery outputs, so it can simultaneously charge 2 battery banks plus the starter battery. And very gently too, using advanced 6-step charging technology.

With its compact and lightweight design and practical screw connections, it can be installed quickly and hassle-free.

Featuring an input voltage range of 110–230 V, it can be used anywhere in the world and will charge reliably even when the input voltage drops. Ideal for frequent travelers and globetrotters.

Useful enhancements: remote control, battery sensor, temperature sensor or Dometic MPC 01 battery controller for up to 30 % faster charging.

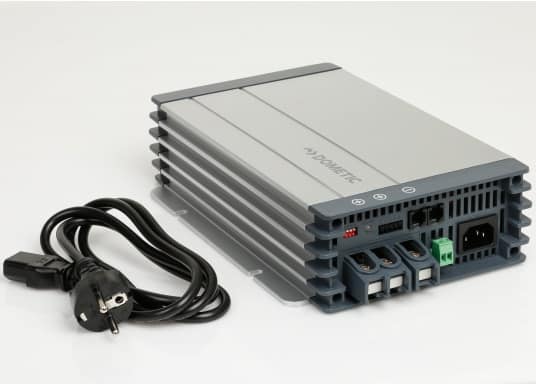

Specifications SKU number 9108400811 Model MCA1235 Scope of delivery Battery charger, 230V connection cable Product Description Battery charger

Dimensions Dimensions product depth 238 mm Dimensions product height 63 mm Dimensions product width 179 mm Net weight 1.70 kg

Electrical Input voltage (AC) 240 V Output current 25.00 A Input frequency 50/60 Hz Battery type Gel, AGM, Lead IP class IP20

Performance Energy efficiency ≤87 % Continuous power 25°C 5200.00 W Operating temperature min -20.00 °C Operating temperature max 50.00 °C

Logistics EAN-13 9331391007806 Dimensions parcel depth 324 mm Dimensions parcel height 144 mm Dimensions parcel width 236 mm Parcel weight 2.60 kg
