Sunman EArc Monocrystalline Flexible Solar Panel 175w Frameless
No reviews
$398.00$466.00
We currently have 2 in stock.
No reviews

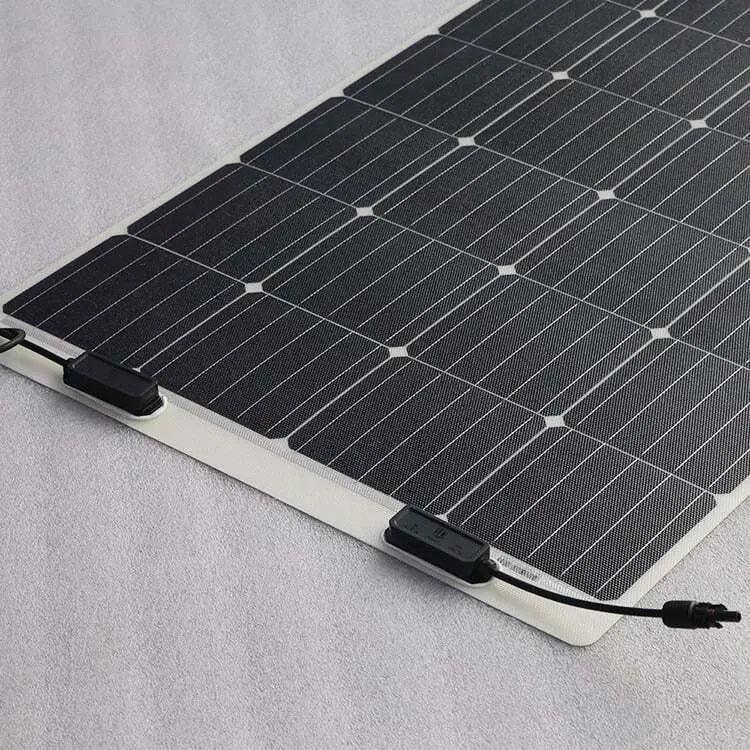

Sunman eArc Monocrystalline Flexible Solar Panel 175W Frameless
Ultra-light - eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100-watt panel weighing just 1.9kgs.
Flexible - eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces.
Easy Installation - eArc can reduce installation costs through ease of handling and faster installation, without the added cost of mounting hardware.
Durability - eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second.
STC
SMF185M-4X09U
Maximum Power (Pmax)
185
Maximum Power Voltage (Vmp)
19.9
Maximum Power Current (Imp)
9.30
Open-circuit Voltage (Voc)
24.1
Short-circuit Current (Isc)
9.78
Module Efficiency (%)
17.9
Operating Temperature (℃)
-40 ℃ to 85 ℃
Maximum System Voltage
600 V DC (IEC)
Maximum Series Fuse Rating
20 A
Application Class
Class A
Power Tolerance
0/+5 W
Solar Cell
Mono (6 inches)
No. of Cells
36 (4×09)
Module Dimensions
1520×680×2 mm
Weight
3.3 kg
Backsheet
White
J-box
IP 68 rated (each j-box have one bypass diodes)
Output Cables
Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
Connector
MC4 compatible
SKU
SNM.SMF175M-4X09U
Model #
SMF175M-4X09U
Brand
Sunman
Shipping Weight
5.0000kg
Shipping Width
1.600m
Shipping Height
0.100m
Shipping Length
0.700m
Shipping Cubic
0.112000000m3
Unit Of Measure
ea
To find shipping costs - add items to the cart - open up shopping cart - at bottom of cart, enter postcode and shipping cost will display
