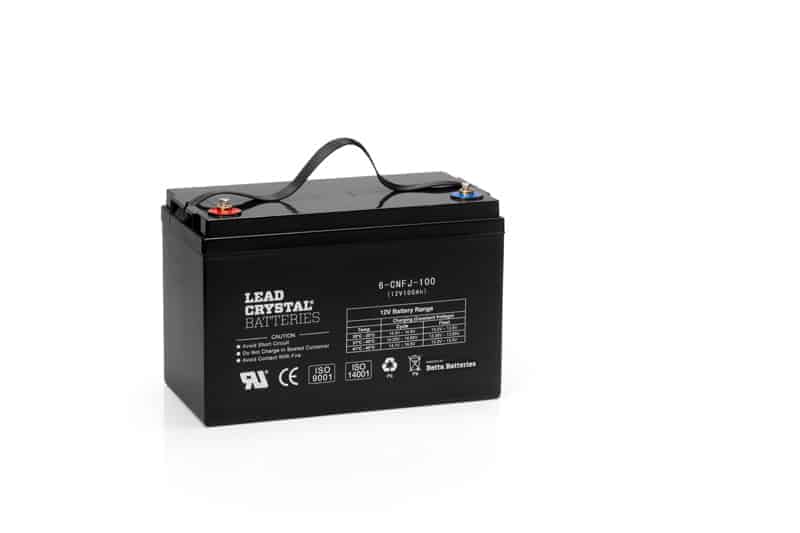

100Ah (110amp) Deep Cycle Lead Crystal maintenance free 12volt batteries suitable for caravan, motor-home, camper-trailer, RV, horse float, holiday house, off grid home and all solar installations.
This was our our preferred battery for all solar requirements - they are similar it a Lithium battery in that you can run them flat repeatedly and they will recover to full charge with no damage to the battery. With a standard AGM battery you should only ever discharge to 50% of the capacity (so a 110amp AGM has 55amps of usable power). With Lead Crystal you can use 95% of the available power. They also take charge at a very high rate so you can easily recharge them with a much bigger charger (solar or mains). Recommended is to have a charger of around 30amps. You can of course utilize a smaller charger but you are not getting the true benefit of the rapid discharge/recharge ability of these lead crystal batteries. Standard N70 sizing - always easy to get replacements - if required. Rated at the industry standard 20hr rate these are a 110amp battery. Manufacturers Description Lead Crystal® batteries, the better alternative to lead acid, lead gel and SAM batteries. Now you have a choice! Lead Crystal ®Batteries characteristics in a nutshell:
Lead CrystalBatteries are high performing
resilient, high performing. Lead Crystal®
Batteries can be discharged deeper, cycled more often (even in extreme temperatures) and have a longer service life compared to lead acid, lead gel and SAM (super absorbant matt) batteries. Lead Crystal®
batteries recover to full rated capacity over and over again.
Lead CrystalBatteries have a unique technology
A unique micro-porous super absorbant matt (SAM), high-purity lead calcium selenium plates, safe SiO2 electrolyte solution that solidifies into a white crystalline powder when charged/discharged.
Lead CrystalBatteries are cleaner and safe
Less acid, no cadmium, no antimony. Lead Crystal®
Batteries are up to 99% recyclable (we are working on getting to 100%) and are classified as non-hazardous goods for air, sea and land transport.
Lead CrystalBatteries are versatile in application
Lead Crystal® Batteries are being used in all industries where conventional lead based batteries like lead acid, lead gel and SAM batteries are used. A few of industries include telecoms, ups, petrochem/marine, defence, renewable energy, health care, manufacturing, transportation and electric motion (wheelchairs, golf carts and trolleys).
Lead Crystal® Technology
Lead Crystal Batteries are robust, resilient and high performing
The robust and resilient characteristics of Lead Crystal® batteries make them suitable for a wide range of applications. Lead Crystal® batteries are being used in telecoms, ups, petrochem/marine, defence, renewable energy, health care, manufacturing, transportation and electric motion (wheelchairs, E-bikes, golf carts and trolleys).
Lead Crystal Batteries have the lowest cost of ownership
Lead Crystal® batteries can be charged faster (even at sub zero temperatures), discharged much deeper (even to 0 Volt), discharged more often, and be used in a wider temperature range (-40 65 C). In addition, Lead Crystal ®
batteries require no special ventilation or cooling. All this results in a very cost effective solution and lowest cost of ownership. Lead Crystal® batteries are designed for harsh environments. Working in temperatures above 65°C and down to -40ﾟC they can be discharged down to 0 volts and recovered daily without loss of capacity while retaining the ability to recharge twice as fast as traditional Lead Acid variants. At -40ﾟC the LC battery can provide up to 50% of the original rated capacity and at 40ﾟC will achieve seven years service life.

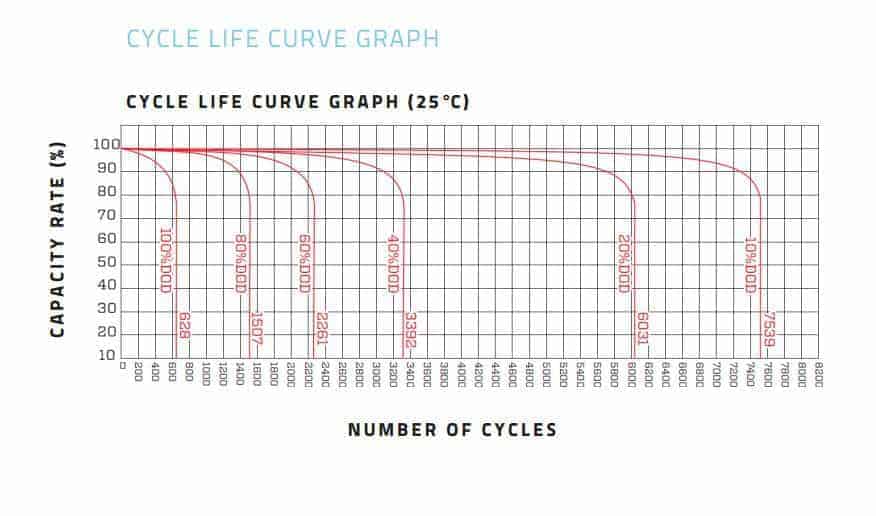

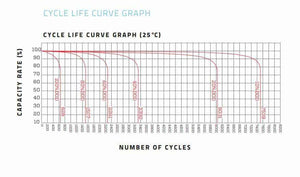

99% Recyclable/Greener/Safer Easy Transport - no special conditions Faster Recharging - up to three as fast as Lead Acid Greater Cyclic Life - 6000 cycles to 20%, over 1600 to 80% DOD Reduced Maintenance High and Low Operating Temperatures: -40ﾟC to 65ﾟC Long Battery Life - up to 18 years float service life Form, Fit, Function replacement for VRLA, AGM and GEL battery range
- Rated Voltage 12
- Ah 20 hrs rate 110
- Weight in Kg 31.50
- L 330
- W 172
- H 220
- 3 year warranty
Charging Lead Crystal Batteries
To gain the most benefit from Lead Crystal batteries you should be charging this battery with a Charger of 20 -30amps. Like a lithium battery you can utilise all the capacity of the battery and then replace the used power as rapidly as possible. Our recommended chargers for your caravan or motorhome are as follows: Thunder 20amp Charger Thunder 30amp Charger Dometic 25amp Charger Dometic 35amp Charger
